ResinDek® Flooring & Shelving Solutions Designed for 3PLs Fast-Paced Environment
As the manufacturer of ResinDek, we understand the requirements of Third-Party Logistics can be complex and that demands can change quickly and unexpectedly. The last thing you need to worry about is how your employees or robots are maneuvering on your elevated platforms. We have been at the forefront of testing and innovating flooring panels for the Material Handling Industry since 1994 and with a 10-year product warranty you can rest assured knowing your ResinDek mezzanine flooring and shelving system will last for years.
Custom Engineered Solutions:
- Cost-effective hybrid flooring solutions customized for each project, from simple layouts to complex platforms
- Engineering and estimating teams provide drawings to minimize field cutting and waste
- Streamlined ordering process makes specifying ResinDek panels simple
- We also provide corrugated steel deck with optimized sizes, runs, thickness, profiles, and beam spacings to save time and money
ResinDek® Flooring Panels for 3PL Facilities
ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.
We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg) ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.
For Use with Corrugated B-Deck:
ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek LD
ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg
ResinDek MD
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek WR
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek WR
ResinDek MAX
1-1/2” (38mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg
ResinDek MAX
No Corrugated B-Deck Required (Single Panel Solution):
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg
ResinDek Xspan & FR
For Use with a Sub Floor:
ResinDek ReShield
¼” (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg
ResinDek ReShield
Optional Coatings & Finishes
For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks
Gray Diamond Seal® Coating
Gray Diamond Seal®
ESD Coating
MetaGard® GVT Steel Decking Surface
Unfinished
For AGV & AMR Robotic Traffic
TriGard®
ESD Ultra Coating
TriGard®
ESD Coating
MetaGard® SST Steel Decking Surface
Related Documents & Case Studies
DOCUMENT
Material Handling Brochure
CASE STUDY
3PL’s Platform Optimized for Mobile Robots

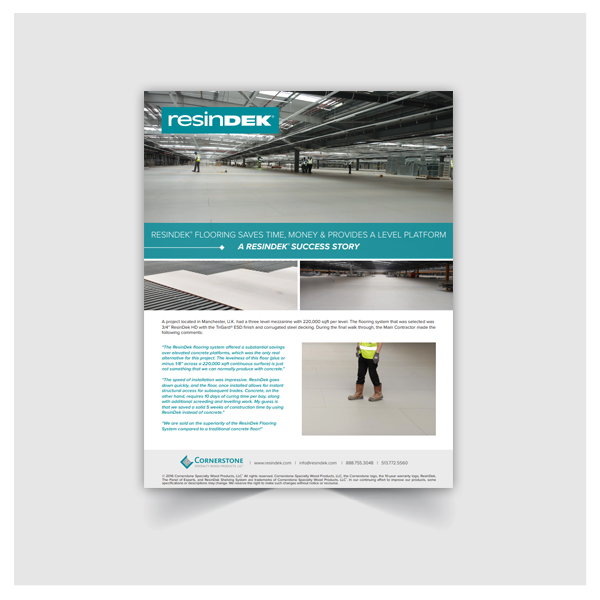

CASE STUDY
ResinDek Saves Times, Money and Provides a Level Platform

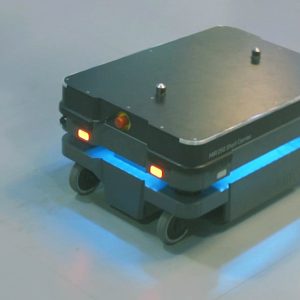

Mezzanine Flooring Solutions for AGVs & AMRs
More operations are implementing AMRs and AGVs to increase throughput and operational efficiency. Learn the advantages of using ResinDek flooring panels on elevated surfaces traveled by robotic automation.
