B-Deck Corrugated Steel Decking
Custom Layout & Engineering Services
At Cornerstone Specialty Wood Products, we do more than just supply corrugated steel decking; we partner with you to ensure your mezzanine or work platform is engineered for maximum performance and cost-efficiency.
Our team of experienced engineers provides expert layout and design support tailored to your specific project requirements. By analyzing your facility’s unique demands, we can help you optimize:
- Steel Thickness (Gauge): Ensuring you have the right strength without overpaying for unnecessary material.
- Corrugated Profiles & Sizes: Matching the exact B-Deck profile to your load requirements.
- Deck Runs & Beam Spacings: Maximizing span efficiency to reduce structural steel costs.

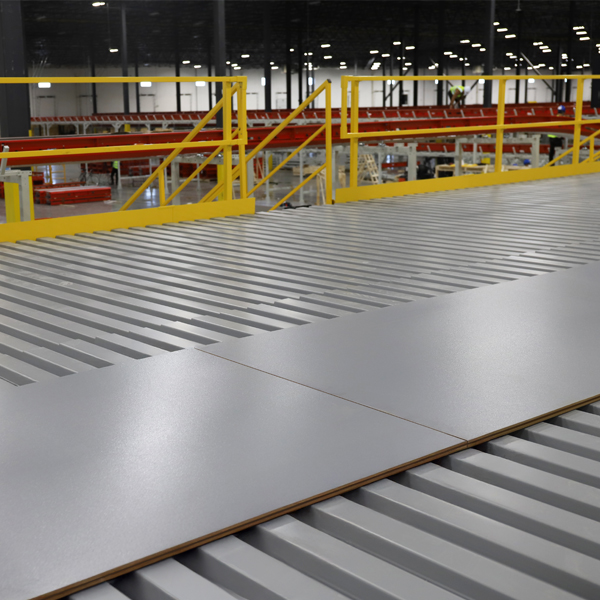

Whether you are designing a high-traffic e-commerce pick module, an AGV robotic platform, or a heavy-duty industrial mezzanine, our design team ensures your B-Deck and ResinDek® flooring system work together flawlessly.
CE Certified
Fire Ratings
Sustainability
EPD from NSF
Moisture Resistance
10-Year Warranty
Pre-Punched B-Deck for Invisi-Loc®
Time is money on a job site, which is why we offer pre-punched B-Deck specifically designed for use with our proprietary Invisi-Loc® underside fastening system.
When installing traditional decking, contractors spend countless hours manually drilling and driving top-side fasteners, which can leave a cluttered, uneven walking surface. By choosing our pre-punched B-Deck:
- Installation is Faster: The pre-punched holes align perfectly with the Invisi-Loc system, significantly reducing installation time and labor costs.

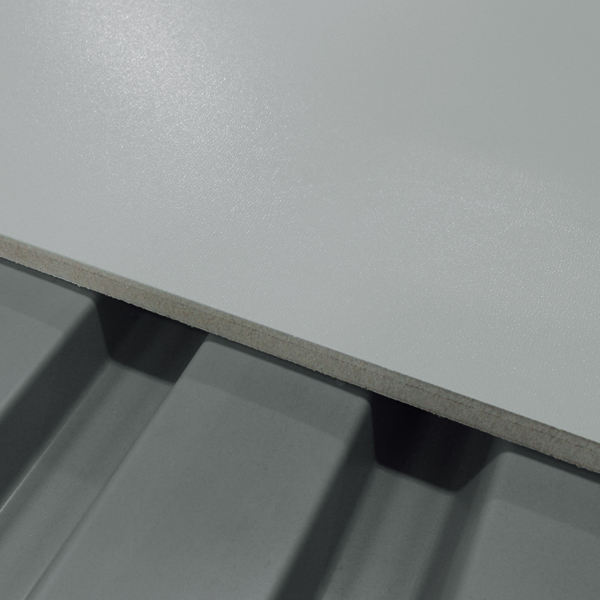

- The Floor is Safer & Cleaner: Because the ResinDek panels are secured from underneath, the top walking surface is completely free of visible screw heads, eliminating tripping hazards and creating a smooth runway for pallet jacks and AGVs.
- Alignment is Guaranteed: The pre-punched deck acts as a built-in template, ensuring precise alignment of your ResinDek panels every time.
Mezzanine B Deck 1.5" (38.1 mm) Allowable Uniform Load (PSF)
| Number of Spans | Gauge | MIN YIELD (KSI) | 36" | 42" | 48" | 54" | 60" | 66" | 72" | 78" | 84" | 90" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | 20 | 60 | 565 | 415 | 318 | 251 | 203 | 168 | 141 | 120 | 104 | 90 |
| 18 | 60 | 792 | 582 | 445 | 352 | 285 | 236 | 198 | 169 | 145 | 127 | |
| 16 | 40 | 575 | 422 | 323 | 255 | 207 | 171 | 144 | 122 | 106 | 92 | |
| Double | 20 | 60 | 563 | 418 | 322 | 256 | 208 | 172 | 145 | 124 | 107 | 93 |
| 18 | 60 | 788 | 586 | 452 | 359 | 292 | 242 | 204 | 174 | 150 | 131 | |
| 16 | 40 | 552 | 410 | 317 | 252 | 205 | 170 | 143 | 122 | 105 | 92 | |
| Triple | 20 | 60 | 692 | 516 | 399 | 317 | 258 | 214 | 180 | 154 | 133 | 116 |
| 18 | 60 | 966 | 722 | 558 | 445 | 362 | 300 | 253 | 216 | 187 | 163 | |
| 16 | 40 | 676 | 505 | 391 | 311 | 254 | 210 | 177 | 152 | 131 | 114 |
Mezzanine B Deck 1.5" (38.1 mm) Loads That Produce L/240 Deflection
| Number of Spans | Gauge | MIN YIELD (KSI) | 36" | 42" | 48" | 54" | 60" | 66" | 72" | 78" | 84" | 90" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | 20 | 60 | 462 | 291 | 195 | 137 | 100 | 75 | 58 | 45 | 36 | 30 |
| 18 | 60 | 658 | 414 | 278 | 195 | 142 | 107 | 82 | 65 | 52 | 42 | |
| 16 | 33 | * | * | * | * | 186 | 140 | 108 | 85 | 68 | 55 | |
| Double | 20 | 60 | * | * | * | * | * | * | * | 116 | 93 | 75 |
| 18 | 60 | * | * | * | * | * | * | 202 | 159 | 127 | 103 | |
| 16 | 33 | * | * | * | * | * | * | * | * | * | * | |
| Triple | 20 | 60 | * | * | 388 | 273 | 199 | 149 | 115 | 91 | 72 | 59 |
| 18 | 60 | * | * | 534 | 375 | 273 | 205 | 158 | 124 | 100 | 81 | |
| 16 | 33 | * | * | * | * | * | * | * | * | 128 | 104 |
NOTE: * Allowable Uniform Load shown only, L/240 Exceeds Allowable Load

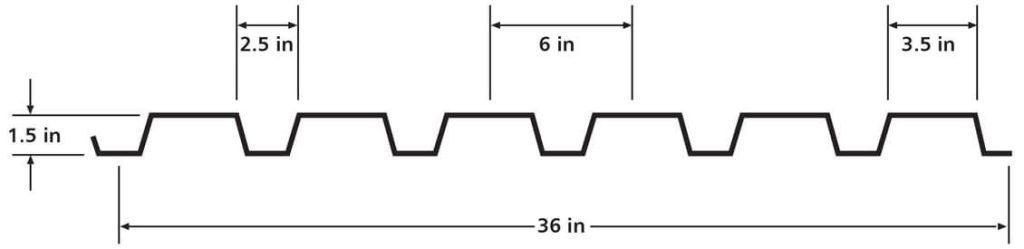

B Deck Physical Properties
| Gauge | Thickness (in) | Weight (lb/ft2) | |
|---|---|---|---|
| Painted | Galvanized | ||
| 20 | 0.0358 | 2.1 | 2.2 |
| 18 | 0.0474 | 2.8 | 2.9 |
| 16 | 0.0598 | 3.4 | 3.5 |
B-Deck FAQs
What is the difference between B-Deck and N-Deck?
Both are corrugated steel decking used for industrial platforms, but they have different profiles. B-Deck is 1.5 inches deep and has a narrower rib, making it the standard choice for most mezzanine floors. N-Deck is deeper (3 inches) with a wider rib, which allows it to span greater distances between structural beams.
What gauge B-Deck do I need for my mezzanine?
The required gauge depends on the beam spacing and the loads your platform must support (such as heavy machinery, pallet jacks, or AGVs). For most industrial platforms using 3/4″ ResinDek flooring, we recommend a minimum of 20-gauge steel or 18-gauge. Our engineering team can help you determine the exact gauge needed for your specific load requirements.
How far can 1.5" B-Deck span?
The span capacity of 1.5″ B-Deck varies based on the gauge of the steel, the number of spans (single, double, or triple), and the uniform load it needs to carry. Please refer to our Allowable Uniform Load tables above for detailed span and deflection calculations.
Why should I buy B-Deck from Cornerstone instead of a local steel supplier?
Buying your B-Deck and ResinDek panels together ensures you are getting a fully integrated, engineered flooring system. It guarantees compatibility, allows you to utilize time-saving options like our pre-punched deck for the Invisi-Loc system, and streamlines your logistics by sourcing your entire platform surface from one trusted partner.
