Design Build & Architects

Environmentally Friendly ResinDek^® Flooring Cuts Costs and Installation Time

Ensure a faster, more cost-effective design solution for your next elevated industrial work platform or mezzanine project with a flooring solution that saves installation time, reduces overall expenses associated with concrete and is a more sustainable solution.

Why Choose ResinDek Flooring Panels:

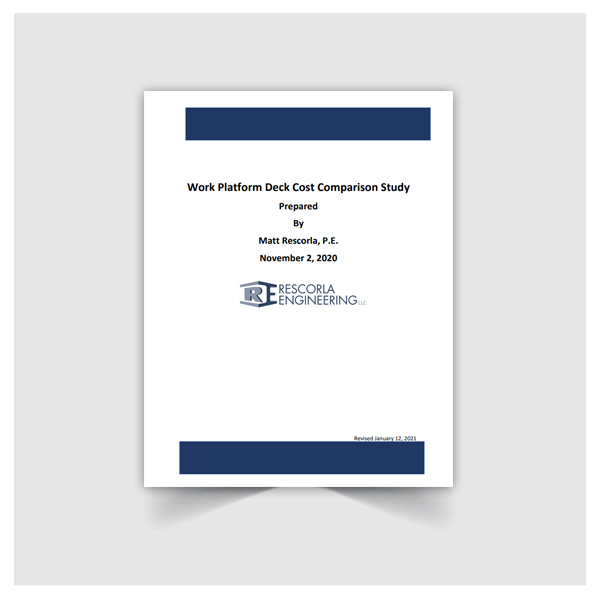

Saves up to 34% in cost per square foot compared to concrete deck mezzanines
Requires fewer joists, smaller footings, and lighter framing—creating more usable space below
Won’t crack, spall, delaminate, or generate excessive noise like alternative materials
Certified with No Added Formaldehyde and contributes to LEED^®
building qualifications
Available with FSC^®Certification (License Code FSC-C124474) when required

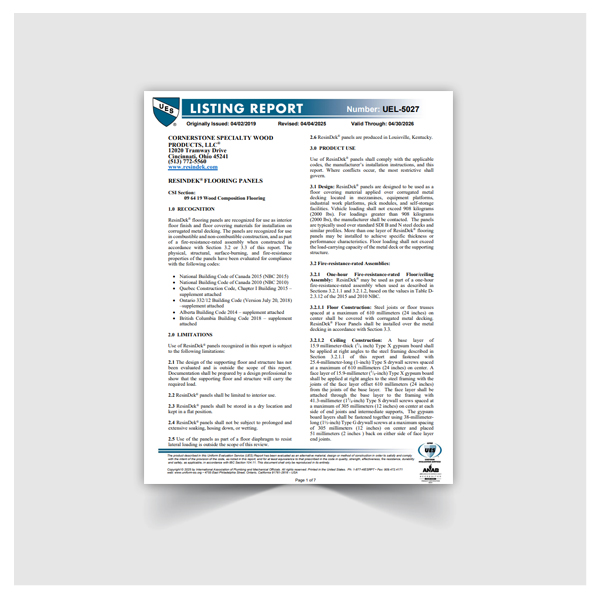

Approved for Types I-V construction and fire-resistance rated assemblies by IAPMO UES (US ER #467, Canada ER #UEL 5027)
Review our other certifications

ResinDek Flooring Panels for Architects

ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.

We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan^®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg) ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.

For Use with Corrugated B-Deck:

ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg

ResinDek LD

ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg

ResinDek MD

ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg

ResinDek HD

ResinDek WR
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg

ResinDek WR

ResinDek MAX
1-1/2” (38mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg

ResinDek MAX

No Corrugated B-Deck Required (Single Panel Solution):

ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg

ResinDek Xspan & FR

For Use with a Sub Floor:

ResinDek ReShield
¼” (6 mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg

ResinDek ReShield

Customer Spotlight – Steele Solutions Inc.

Steele Solutions provides a variety of elevated platform solutions with mezzanines, platforms, catwalks, crossovers, and more. Natalie Gundrum, Director of Sales talks about their long-lasting relationship with Cornerstone Specialty Wood Products and the variety of locations where they utilize ResinDek in their designs for engineered platforms.
