Cold Storage

Resindek® Flooring and Shelving Withstand Frigid Temperatures of Cold Storage Facilities

 When the temperature dips below 40° F (4 ° C), it must be a refrigerated or freezer facility. To maximize that chill, you rely on an elevated work platform, pick modules, or mezzanines to increase inventory volume and storage density.

“We have been pleasantly surprised at the durability of the ResinDek panels”, said a Warehouse Director for a Cold Storage Warehouse Facility. “In the past we have used concrete, bar grate, and poly deck. Our space is subjected to temperatures ranging from 55° F. to -20° F., (12° C – 29 ° C) and we do not “baby” our floors. Each flooring type has its advantages and disadvantages, but ResinDek panels are a solid choice for us. They are less expensive than concrete, and easier to walk and transport our products on than bar grate. We are moving 6,000 cases per day from this facility, so our floors see a lot of traffic”.

ResinDek flooring panels:

  • Offer a moisture-resistant solution that is an extremely effective choice for mezzanine flooring in cooler and freezer environments

  • Provide the strength associated with concrete, yet they save you tens of thousands of dollars

  • Easier to walk on vs. bar grate and will not delaminate like poly deck

ResinDek® Floor Panels for Cold Storage Facilities

ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.

We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg)  ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.

For Use with Corrugated B-Deck:

ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg

ResinDek LD

ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg

ResinDek MD

ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg

ResinDek HD

ResinDek WR
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg

ResinDek WR

ResinDek MAX
1-1/2” (38mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg

ResinDek MAX

No Corrugated B-Deck Required (Single Panel Solution):

ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg

ResinDek HD

ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg

ResinDek Xspan & FR

For Use with a Sub Floor:

ResinDek ReShield
¼” (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg

ResinDek ReShield

Optional Coatings & Finishes

For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks

Gray Diamond Seal® Coating

Gray Diamond Seal®
ESD Coating

MetaGard® GVT Steel Decking Surface

Unfinished

For AGV & AMR Robotic Traffic

TriGard®
ESD Ultra Coating

TriGard®
ESD Coating

MetaGard® SST Steel Decking Surface

Related Documents & Case Studies

CASE STUDY

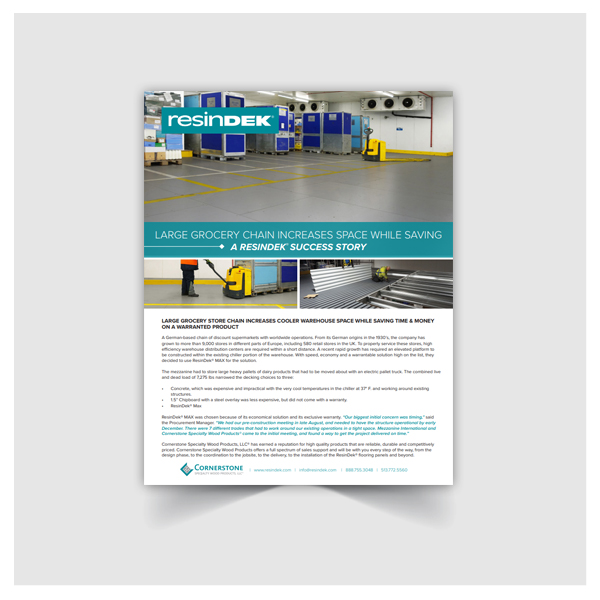

Large Grocery Store Chain Upgrades Cold Storage Warehouse

CASE STUDY

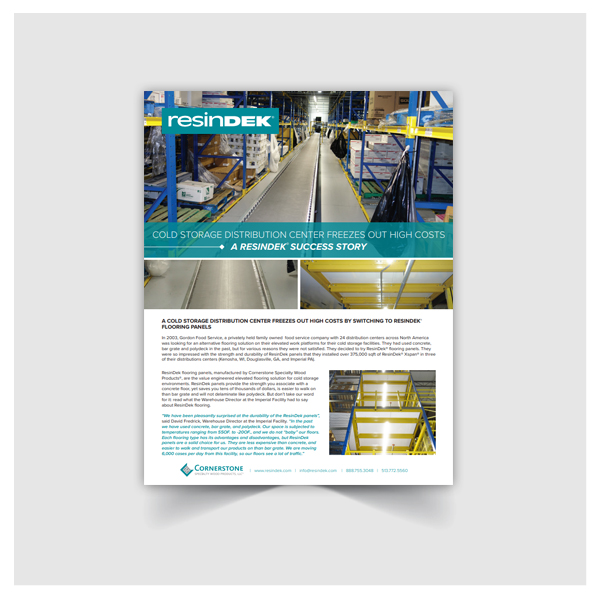

Cold Storage Distribution Center Freezes Out High Costs

CASE STUDY

ResinDek Flooring Provides Ergonomic Benefits

DOCUMENT

Material Handling Brochure

ResinDek Flooring Panels Inside a Distribution Center

Discover how ResinDek mezzanine flooring panels can be customized for different load capacities, types of traffic, and required floor finish.
