ResinDek® Saves Time and Money for Contractors and Installers
While concrete has been the industry go-to for flooring surfaces in elevated industrial work platforms and mezzanines, it’s also expensive and time-consuming to install. Not to mention prone to cracking, spalling, and degradation with robotic fleets. A mezzanine designed with ResinDek flooring can save you up to 34% in overall cost per square foot compared to a mezzanine that has a concrete platform. In fact, a concrete deck is 77% higher just on the installed cost when compared to a platform with ResinDek panels.
With ResinDek Flooring You Get:
- An extremely cost-effective flooring solution tailored to meet the needs of each individual project
- Comprehensive layouts to minimize field cutting and waste
- Design and product selection recommendations, logistics and jobsite support, guidance on complex projects, coaching of inexperience installers and customization capabilities
- Fast response to quotations from in-house engineering and estimating teams
- Money and time savings by providing corrugated steel deck that is optimized for sizes, runs, steel thickness, corrugated profiles, and beam spacings
ResinDek Flooring Panels for General Contractors
ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.
We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg) ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.
For Use with Corrugated B-Deck:
ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek LD
ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg
ResinDek MD
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek WR
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek WR
ResinDek MAX
1-1/2” (38 mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg
ResinDek MAX
No Corrugated B-Deck Required (Single Panel Solution):
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg
ResinDek Xspan & FR
For Use with a Sub Floor:
ResinDek ReShield
1/4″ (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg
ResinDek ReShield
Customer Spotlight – Baker Brothers Installations Inc
Baker Brothers Installations Inc. offers full-service design and installation solutions providing integrated material handling solutions. Mark Lee, Project Manager talks about their experience with ResinDek® flooring, one of their main installations on free-standing platforms and flooring for robotics; and the ease of installation.
Related Documents & Case Studies
DOCUMENT

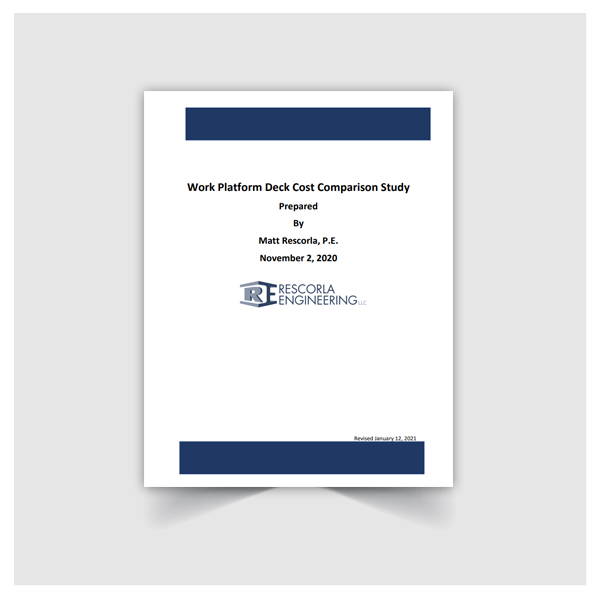

Work Platform Deck Cost Comparison Study
CASE STUDY

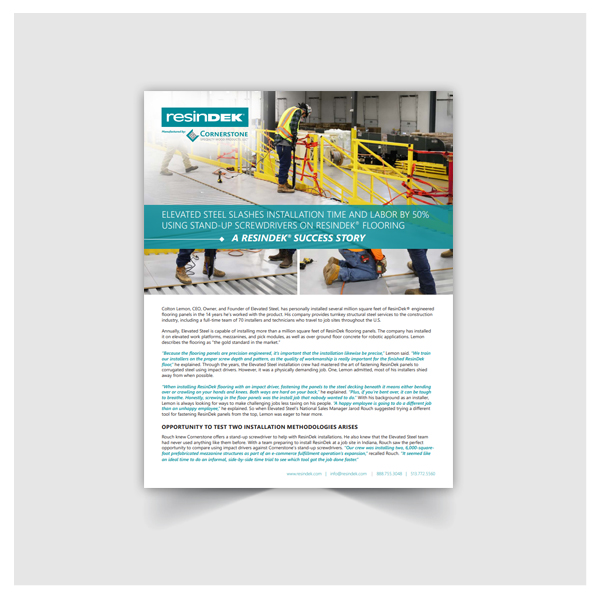

Elevated Steel Reduced Installation Time by 50%
CASE STUDY

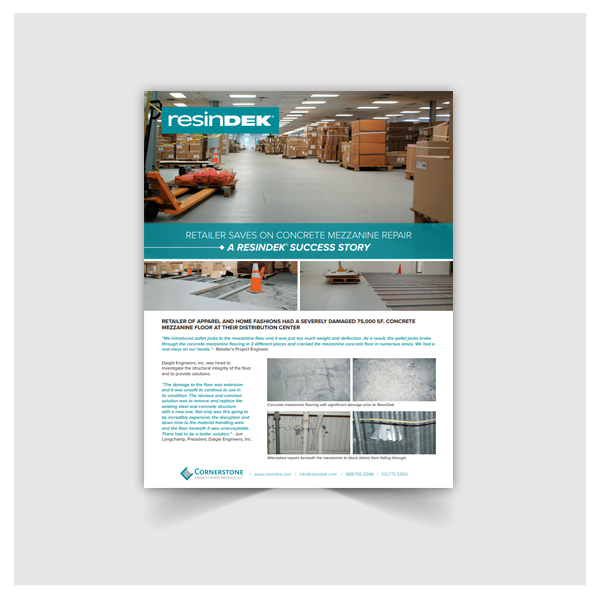

Retailer Saves on Concrete Mezzanine Repairs
