Manufacturing
Heavy-Duty Flooring Engineered for Manufacturing's Toughest Demands
Manufacturing operations demand flooring that can handle constant punishment without compromising safety or productivity. Whether you’re managing just-in-time (JIT) line-side deliveries of dense parts and components via manually guided carts and pallet jacks, or operating heavy equipment and high-capacity storage systems, ResinDek® provides an elevated flooring solution built to withstand your facility’s most challenging conditions. Unlike traditional materials that crack, splinter, or deteriorate under heavy loads and repetitive traffic, ResinDek delivers exceptional durability and longevity—minimizing downtime, reducing maintenance costs, and creating a safer work environment for your team.
Key Benefits for Manufacturers:
- Superior Load Capacity – Handles heavy parts, equipment, and high-density storage without deflection or structural compromise
- Impact & Abrasion Resistance – Withstands the daily punishment of metal components, tooling, and industrial equipment traffic
- Low Maintenance & Long Lifespan – Resists splintering, cracking, and moisture damage, reducing costly repairs and replacements
- Enhanced Safety – Smooth, non-porous surface prevents trip hazards and improves material handling efficiency
ResinDek® Floor Panels for Manufacturing Facilities
ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.
We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg) ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.
For Use with Corrugated B-Deck:
ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek LD
ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg
ResinDek MD
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek WR
¾” (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek WR
ResinDek MAX
1-1/2” (38mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg
ResinDek MAX
No Corrugated B-Deck Required (Single Panel Solution):
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg
ResinDek Xspan & FR
For Use with a Sub Floor:
ResinDek ReShield
¼” (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg
ResinDek ReShield
Optional Coatings & Finishes
For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks
Gray Diamond Seal® Coating
Gray Diamond Seal®
ESD Coating
MetaGard® GVT Steel Decking Surface
Unfinished
For AGV & AMR Robotic Traffic
TriGard®
ESD Ultra Coating
TriGard®
ESD Coating
MetaGard® SST Steel Decking Surface
Related Documents & Case Studies
CASE STUDY

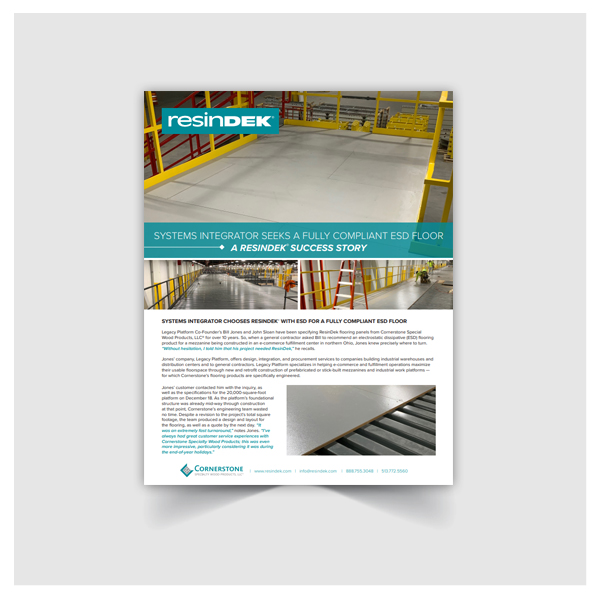

System Integrator Choose ResinDek for a Fully Compliant ESD Floor
CASE STUDY

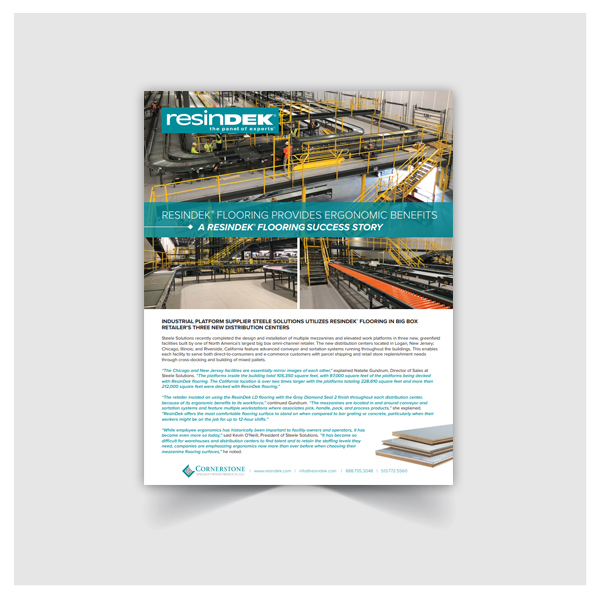

ResinDek Flooring Provides Ergonomic Benefits
