ResinDek® Flooring Provides a Hard-Wearing Surface for Robotic Micro-Fulfillment Centers

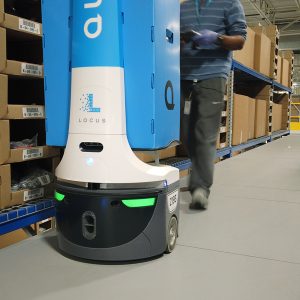

Big throughput in a compact footprint: that’s today’s micro-fulfillment center in a nutshell. Thanks to autonomous mobile robots (AMRs) or automatic guided vehicles (AGVs), you can maximize order volumes while minimizing last-mile delivery time and distance. But did you know that gloss, texture, and wear on the fllor can all affect the ability of the robot to run at optimal levels.
ResinDek – Optimized Flooring for Robotic Operations:
- Flooring conditions for robot performance – gloss, texture, and wear directly affect optimal operation
- Robotic flooring specialist – pioneered flooring panels for AGV and AMR applications
- Industry-tested solutions – trusted by leading AGV/AMR manufacturers for testing labs
- Millions of square feet deployed – proven performance in distribution centers, warehouses, retail, and micro-fulfillment centers worldwide
ResinDek® Floor Panels for Robotic Micro-Fulfillment Centers
ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.
We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg) ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.
For Use with Corrugated B-Deck:
ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek LD
ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg
ResinDek MD
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek WR
¾” (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek WR
ResinDek MAX
1-1/2” (38mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg
ResinDek MAX
No Corrugated B-Deck Required (Single Panel Solution):
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg
ResinDek Xspan & FR
For Use with a Sub Floor:
ResinDek ReShield
¼” (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg
ResinDek ReShield
Optional Coatings & Finishes
For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks
Gray Diamond Seal® Coating
Gray Diamond Seal®
ESD Coating
MetaGard® GVT Steel Decking Surface
Unfinished
For AGV & AMR Robotic Traffic
TriGard®
ESD Ultra Coating
TriGard®
ESD Coating
MetaGard® SST Steel Decking Surface
Related Documents & Case Studies
CASE STUDY
Evergreen Enterprises Installs ResinDek on the Ground Floor
CASE STUDY
3PL’s Platform Optimized for Mobile Robots
DOCUMENT

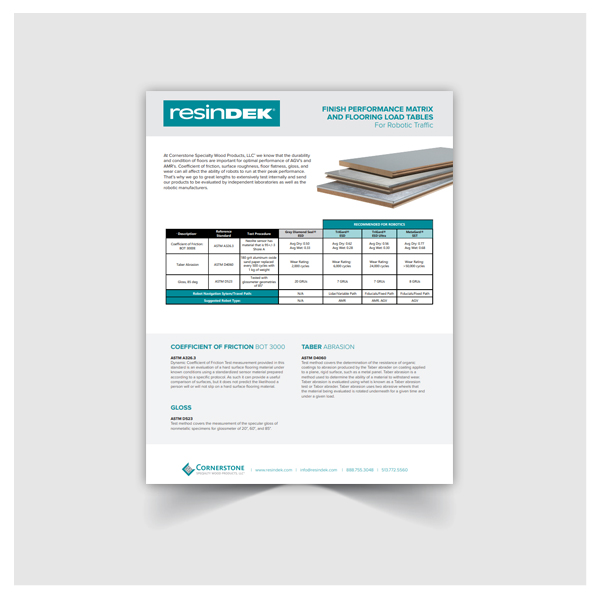

Finish and Load Tables for Robotic Traffic
