CORRUGATED METAL DECKING
INDUSTRIAL PLATFORM DECKING - B DECK AND N DECK
Cornerstone Specialty Wood Products, LLC® provides corrugated metal deck products in a variety of profiles, thicknesses, yield strengths and finishes. The Engineers at Cornerstone Specialty Wood Products will help you optimize sizes, runs, steel thicknesses, corrugated profiles, and beam spacings, thus saving you time and money. To assist with the ease of installation we can even supply pre-punched B Deck and N Deck for use with our Invisi-Loc® underside fastening system.
Corrugated metal deck products are available in a variety of gauges and finishes. A bright white underside is available for excellent light reflectivity, but gray primer, galvanized or stainless steel is also available. We recommend that a minimum of 20 gauge metal B Deck and N Deck be used on all 3/4" ResinDek® flooring projects.
B DECK
We recommend that a minimum of 20 gauge metal B Deck be used on all 3/4" ResinDek® flooring projects and a minimum of 18 gauge when live and dead pallet jack loads exceed 2,500 lbs.

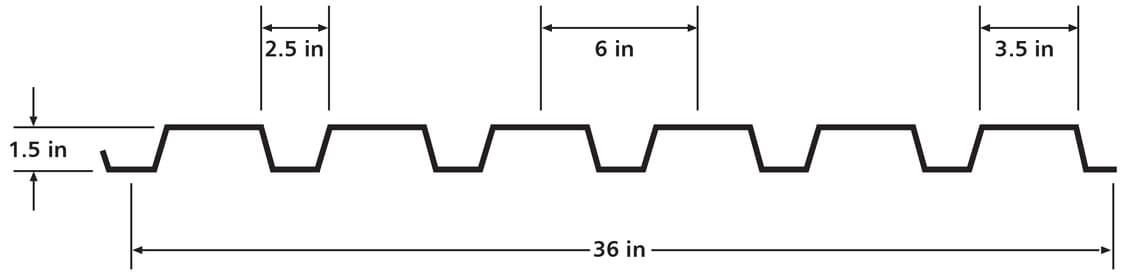

Mezzanine B Deck 1.5" Allowable Uniform Load (PSF)/Loads That Produce L/240 Deflection
| Number of Spans | Gauge | MIN YIELD (KSI) | 36" | 42" | 48" | 54" | 60" | 66" | 72" | 78" | 84" | 90" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | 20 | 60 | 565/462 | 415/291 | 318/195 | 251/137 | 203/100 | 168/75 | 141/58 | 120/45 | 104/36 | 90/30 |
| 18 | 60 | 792/658 | 582/414 | 445/278 | 352/195 | 285/142 | 236/107 | 192/82 | 169/65 | 145/52 | 127/42 | |
| 16 | 33 | 575* | 422* | 323* | 255* | 207/186 | 171/140 | 144/108 | 122/85 | 106/68 | 92/55 | |
| Double | 20 | 60 | 563* | 418* | 322* | 256* | 208* | 172* | 145* | 124/116 | 107/93 | 93/75 |
| 18 | 60 | 788* | 586* | 452* | 359* | 292* | 242* | 204/202 | 174/159 | 150/127 | 130/103 | |
| 16 | 33 | 552* | 410* | 317* | 252* | 205* | 170* | 143* | 122* | 105* | 92* | |
| Triple | 20 | 60 | 692* | 516* | 399/388 | 317/273 | 258/199 | 214/149 | 180/115 | 154/91 | 133/72 | 116/59 |
| 18 | 60 | 966* | 722* | 558/534 | 445/375 | 362/273 | 300/205 | 253/158 | 216/124 | 187/100 | 163/81 | |
| 16 | 33 | 676* | 505* | 391* | 311* | 254* | 210* | 177* | 152* | 131/128 | 114/104 | |
View Chart in MetricsNOTE: * Allowable Uniform Load shown only, L/240 Exceeds Allowable Load
B Deck Physical Properties
| Gauge | Thickness (in) | Weight (lb/ft2) | |
|---|---|---|---|
| Painted | Galvanized | ||
| 20 | 0.0358 | 2.1 | 2.2 |
| 18 | 0.0474 | 2.8 | 2.9 |
| 16 | 0.0598 | 3.4 | 3.5 |
N DECK
N-Deck can be used for pallet jacks as well as robots - please contact Cornerstone Specialty Wood Products for warranted capabilities.

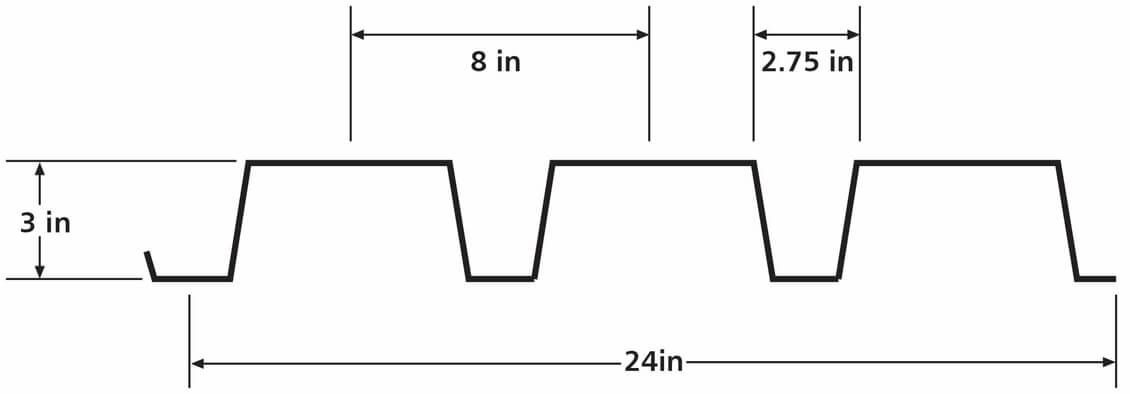

Mezzanine N Deck 3.0" Allowable Uniform Load (PSF)/Loads That Produce L/240 Deflection
| Number of Spans | Gauge | MIN YIELD (KSI) | 84" | 90" | 96" | 102" | 108" | 116" | 120" | 126" | 132" | 138" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | 20 | 60 | 219/160 | 191/130 | 168/107 | 149/89 | 133/75 | 119/64 | 108/55 | 98/47 | 89/41 | 81/36 |
| 18 | 60 | 325/236 | 283/192 | 249/158 | 220/132 | 196/111 | 176/94 | 159/81 | 144/70 | 132/61 | 120/53 | |
| 16 | 40 | 290* | 253* | 222* | 197/186 | 175/157 | 157/133 | 142/114 | 129/99 | 117/86 | 107/75 | |
| Double | 20 | 60 | 224* | 209* | 189* | 168* | 150* | 135* | 122* | 111* | 101* | 92* |
| 18 | 60 | 349* | 304* | 268* | 238* | 213* | 191* | 173* | 157* | 143* | 131* | |
| 16 | 40 | 305* | 266* | 234* | 208* | 186* | 167* | 151* | 137* | 125* | 114* | |
| Triple | 20 | 60 | 255* | 238* | 223* | 208/192 | 186/161 | 167/137 | 151/118 | 137/102 | 125/88 | 115/77 |
| 18 | 60 | 430* | 378* | 333/323 | 295/269 | 264/227 | 237/193 | 215/165 | 195/143 | 178/124 | 163/109 | |
| 16 | 40 | 378* | 330* | 291* | 258* | 231* | 207* | 187* | 170* | 155* | 142* | |
NOTE: * Allowable Uniform Load shown only, L/240 Exceeds Allowable Load
N Deck Physical Properties
| Gauge | Thickness (in) | Weight (lb/ft2) | |
|---|---|---|---|
| Painted | Galvanized | ||
| 20 | 0.0358 | 2.50 | 2.50 |
| 18 | 0.0474 | 3.20 | 3.30 |
| 16 | 0.0598 | 4.10 | 4.20 |
