ResinDek® MD Flooring Panels
Mezzanine Decking for Equipment, Storage & Fulfillment Platforms
Designed to withstand the demanding requirements of work platforms, sortation platforms, and micro-fulfillment operations, ResinDek MD composite engineered wood panels provide a flat, level surface for heavy rolling pallet jack loads, AMRs, and AGVs. Each panel is precision-engineered with a tongue-and-groove configuration that promotes effective panel-to-panel wheel load transfer. When required, tongue-and-groove configurations are available on all four sides. ResinDek MD’s eco-friendly manufacturing using recycled wood fibers and formaldehyde-free processes ensures dependable industrial performance while reducing your facility’s environmental impact.
CE Certified
Fire Ratings
Sustainability
EPD from NSF
IAPMO UES
10-Year Warranty
ResinDek MD Technical Data
- Panel Thickness:
- 3/4" (19mm)
- Panel Weight:
- 2.8 psf (16.6 kg/m2) | 4.2 psf ((23.9 kg/m2) with MetaGard finish
- Pallet Jack & Product Load Limits:
- Pallet jack rolling loads up to 2,500 lbs (1135 kg) with 20 GA (0.9 mm) B-Deck Pallet jack rolling loads up to 3,500 lbs (1590 kg) with 18 GA (1.2 mm) B-Deck
- Mobile Robot & Product Load Limits:
- AGV/AMR rolling loads up to 2,000 lbs (910 kg) with 20 GA (0.9 mm) B-Deck AGV/AMR rolling loads up to 3,000 lbs (1365 kg) with 18 GA (1.2 mm) B-Deck
- Panel Thickness: 3/4" (19mm)
- Panel Weight: 2.8 psf (16.6 kg/m2) | 4.2 psf ((23.9 kg/m2) with MetaGard finish
- Pallet Jack & Product Load Limits: Pallet jack rolling loads up to 2,500 lbs (1135 kg) with 20 GA (0.9 mm) B-Deck; Pallet jack rolling loads up to 3,500 lbs (1590 kg) with 18 GA (1.2 mm) B-Deck
- Mobile Robot & Product Load Limits: AGV/AMR rolling loads up to 2,000 lbs (910 kg) with 20 GA (0.9mm) B-Deck; AGV/AMR rolling loads up to 3,000 lbs (1365 kg) with 18 (1.20) GA B-Deck
Certifications & Compliance
| ResinDek Product | SCS / FSC® | NAF | LEED® | CE Mark | UES-SR | UL | ASTM E-84 Class A | Moisture Resistance |
|---|---|---|---|---|---|---|---|---|
| MD | MR50 |
| ResinDek Product | MD |
|---|---|
| SCS / FSC® | |
| NAF | |
| LEED® | |
| CE Mark | |
| UES-SR | |
| UL | |
| ASTM E-84 Class A | |
| Moisture Resistance | MR50 |
*FSC® License Code FSC-C124474 Certification available upon request only, please specify if FSC is required prior to ordering.

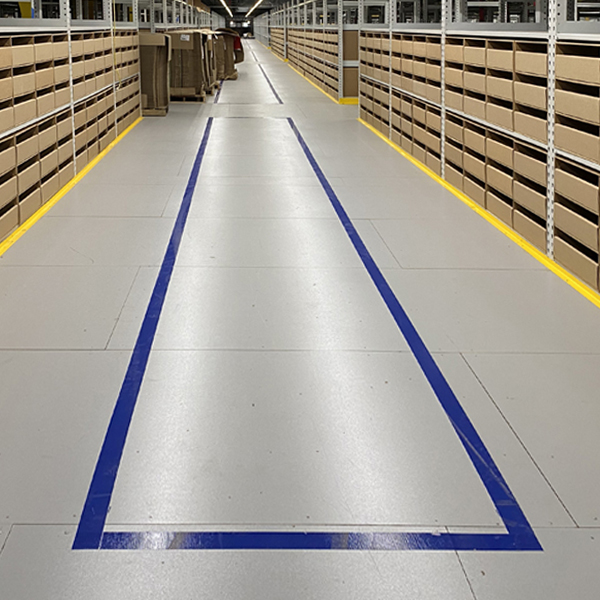

ResinDek MD Industrial Mezzanine Flooring

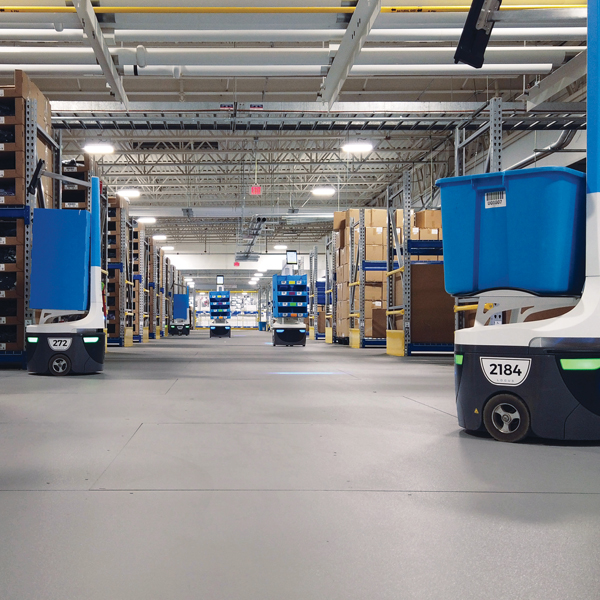

ResinDek MD panels deliver robust performance for logistics, warehouses, and distribution centers requiring superior load-bearing capacity. These industrial wood flooring systems support rolling pallet jack loads up to 3,500 lbs (1590 kg) and robotic fleets up to 3,000 lbs (1365 kg), making them ideal for:

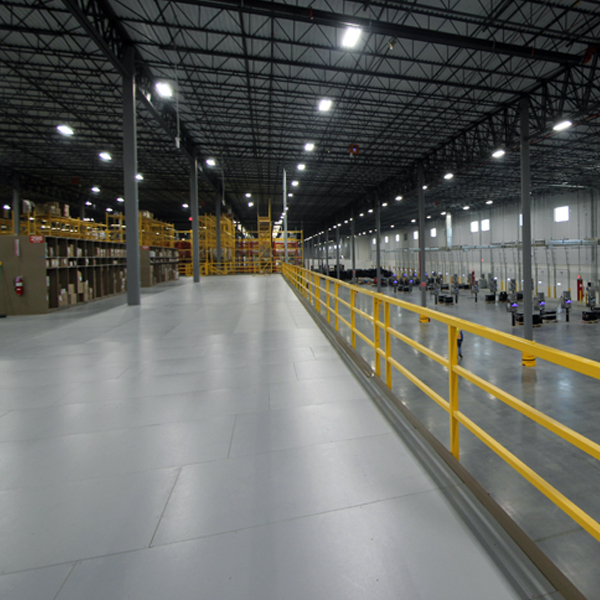

- Multi-level mezzanine flooring and elevated platforms
- Distribution centers with intensive pallet jack traffic and AGV and AMR traffic
- Manufacturing facilities with material handling equipment
- Rack-supported mezzanines and work platforms
Built to Last: Advanced Composite Technology
ResinDek MD features a denser composite structure manufactured using:
- High-density recycled and recovered wood fiber composition
- Advanced resin bonding technology
- Formaldehyde-free manufacturing standards
- Enhanced wax emulsifier treatment for moisture resistance
Our proprietary compression molding process applies extreme heat and pressure to bond these materials, creating 3/4″ (19mm) panels with exceptional dimensional stability and superior load-bearing capacity. Available in sizes up to 4′ × 10′ (1219 mm × 3048 mm).
Engineered Flooring Panel Systems with Professional Design Services
The integrated tongue-and-groove edge design provides continuous load distribution across multiple panels, preventing deflection at joints. Custom four-sided tongue-and-groove configurations available for complex layouts and specialized applications.
Every ResinDek panel is custom manufactured and backed by comprehensive design engineering services and a 10-year product warranty.
Optional Coatings & Finishes
For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks
Gray Diamond Seal® Coating
Gray Diamond Seal® ESD Coating
MetaGard® GVT Steel Decking Surface
Unfinished
For AGV & AMR Robotic Traffic
TriGard® ESD Ultra Coating
TriGard® ESD Coating
MetaGard® SST Steel Decking Surface
Fastening Systems for ResinDek® MD
Top Side Engineered Fasteners
For conventional top side fastener installation, use Cornerstone Specialty Wood Products, LLC Collated Stand-up Screwdriver and collated engineered drill screws. Not only will the collated screwdriver gun save you up to 40% in fastening costs, but it will reduce installation fatigue with its ergonomic design.
The top side engineered fasteners are designed for strength, durability and easy installation. No countersinking or pre-drilling is required as the wings are near the top of the shaft, which counterbore for screw heads. The number 2 square drive heads and points easily pierce up to 12 gauge (2.66 mm) steel decking and is designed to drill through wood and steel decking prior to the threads engaging, thus preventing the mezzanine floor panels from lifting.
Our engineered fasteners offer the following advantages:
- More consistent screw depth with greater control and settings
- Low lead screw tips
- Fast and easy bit tip replacements
- Requires minimal training
- Stout #10 wire gauge screw
- Zinc coating for high humidity environments resists corrosion
- Your choice of gray or beige engineered fasteners
Invisi-Loc® Underside Engineered Fastening System
Invisi-Loc provides showcase mezzanine floor systems with no visible fasteners that are dependable, economical and easy to install. The Invisi-Loc under deck engineered fastening system mounts fasteners under the mezzanine decking hiding unwanted screw holes on top. Plus, when installed with our pre-punched corrugated metal decking, installation time is reduced and potentially dangerous metal shavings are eliminated.
- 20 Invisi-Loc engineered fasteners are required per 4′ x 8′ (1219 x 2438 mm) sheet. A pneudralic installation tool and a standard medium duty air compressor supplies the required power.
- Corrugated metal decking is pre-punched and B metal deck is fastened to the bar joists like other steel decking using drilling screws or welding.
- All pneudralic installation tools can be rented or purchased from Cornerstone Specialty Wood Products, LLC.
- When installed according to Cornerstone Specialty Wood Products, LLC specifications the Invisi-Loc Underside Engineered Fastening System carries a 10-year warranty.
Collated Screws For Corrugated Steel Deck
B-Deck screws work best in roll form beams and structural steel under 3/16″ (4.76 mm) thick. Valleys less than 2-1/2″ (63.5 mm) wide may not accommodate the screwdriver. Contact Cornerstone Specialty Wood Products, LLC for additional information.
Note: Additional Fastening Systems are available, please contact Cornerstone Specialty Wood Products, LLC for more information.
