ResinDek® N Deck Corrugated Metal Decking
Industrial Platform Decking
Cornerstone Specialty Wood Products, LLC® provides corrugated metal deck products in a variety of profiles, thicknesses, yield strengths and finishes. The Engineers at Cornerstone Specialty Wood Products will help you optimize sizes, runs, steel thicknesses, corrugated profiles, and beam spacings, thus saving you time and money. To assist with the ease of installation we can even supply pre-punched B Deck and N Deck for use with our Invisi-Loc® underside fastening system.
Corrugated metal deck products are available in a variety of gauges and finishes. A bright white underside is available for excellent light reflectivity, but gray primer, galvanized or stainless steel is also available. We recommend that a minimum of 20 gauge (.9 mm) metal B Deck and N Deck be used on all 3/4″ (19 mm) ResinDek flooring projects.
CE Certified
Fire Ratings
Sustainability
EPD from NSF
Moisture Resistance
10-Year Warranty
Mezzanine N Deck 3.0" (76.2 mm) Allowable Uniform Load (PSF)
| Number of Spans | Gauge | MIN YIELD (KSI) | 84" | 90" | 96" | 102" | 108" | 116" | 120" | 126" | 132" | 138" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | 20 | 60 | 219 | 191 | 168 | 149 | 133 | 119 | 108 | 98 | 89 | 81 |
| 18 | 60 | 325 | 283 | 249 | 220 | 196 | 176 | 159 | 144 | 132 | 120 | |
| 16 | 40 | 290 | 253 | 222 | 197 | 175 | 157 | 142 | 129 | 117 | 107 | |
| Double | 20 | 60 | 224 | 209 | 189 | 168 | 150 | 135 | 122 | 111 | 101 | 92 |
| 18 | 60 | 349 | 304 | 268 | 238 | 213 | 191 | 173 | 157 | 143 | 131 | |
| 16 | 40 | 305 | 266 | 234 | 208 | 186 | 167 | 151 | 137 | 125 | 114 | |
| Triple | 20 | 60 | 255 | 238 | 223 | 208 | 186 | 167 | 151 | 137 | 125 | 115 |
| 18 | 60 | 430 | 378 | 333 | 295 | 264 | 237 | 215 | 195 | 178 | 163 | |
| 16 | 40 | 378 | 330 | 291 | 258 | 231 | 207 | 187 | 170 | 155 | 142 |
Mezzanine N Deck 3.0" (76.2 mm) Loads That Produce L/240 Deflection
| Number of Spans | Gauge | MIN YIELD (KSI) | 84" | 90" | 96" | 102" | 108" | 116" | 120" | 126" | 132" | 138" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | 20 | 60 | 160 | 130 | 107 | 89 | 75 | 64 | 55 | 47 | 41 | 36 |
| 18 | 60 | 236 | 192 | 158 | 132 | 111 | 94 | 81 | 70 | 61 | 53 | |
| 16 | 40 | * | * | * | 186 | 157 | 133 | 114 | 99 | 86 | 75 | |
| Double | 20 | 60 | * | * | * | * | * | * | * | * | * | * |
| 18 | 60 | * | * | * | * | * | * | * | * | * | * | |
| 16 | 40 | * | * | * | * | * | * | * | * | * | * | |
| Triple | 20 | 60 | * | * | * | 192 | 161 | 137 | 118 | 102 | 88 | 77 |
| 18 | 60 | * | * | 323 | 269 | 227 | 193 | 165 | 143 | 124 | 109 | |
| 16 | 40 | * | * | * | * | * | * | * | * | * | * |

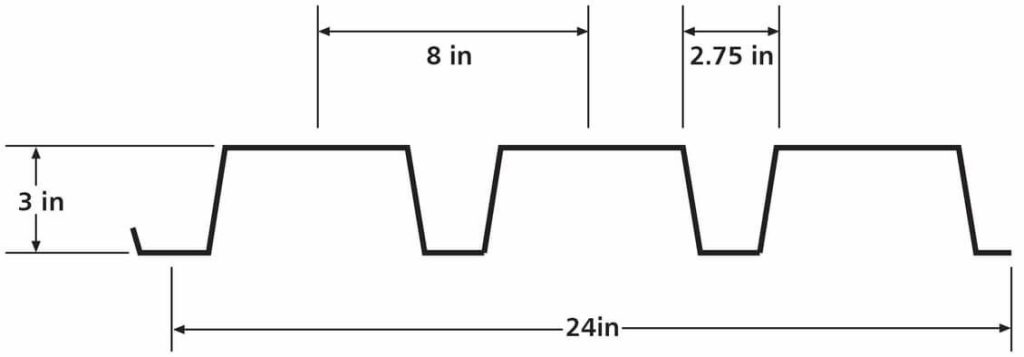

N Deck Physical Properties
| Gauge | Thickness (in) | Weight (lb/ft2) | |
|---|---|---|---|
| Painted | Galvanized | ||
| 20 | 0.0358 | 2.50 | 2.50 |
| 18 | 0.0474 | 3.20 | 3.30 |
| 16 | 0.0598 | 4.10 | 4.20 |
