Pallet Rack Shelving & ResinDek® Shelving System
We offer comprehensive shelving solutions for industrial warehouse and distribution centers, ranging from traditional pallet rack shelving materials to the fully customizable ResinDek shelving system. We have a variety of pallet rack shelving options for lighter-weight applications, along with our durable ResinDek panels for heavier-duty needs. The ResinDek Shelving System features hardware-free installation with moisture-resistant fiberboard shelving and dividers, offering superior durability and fire resistance compared to traditional cardboard alternatives.
Pallet Rack Shelving

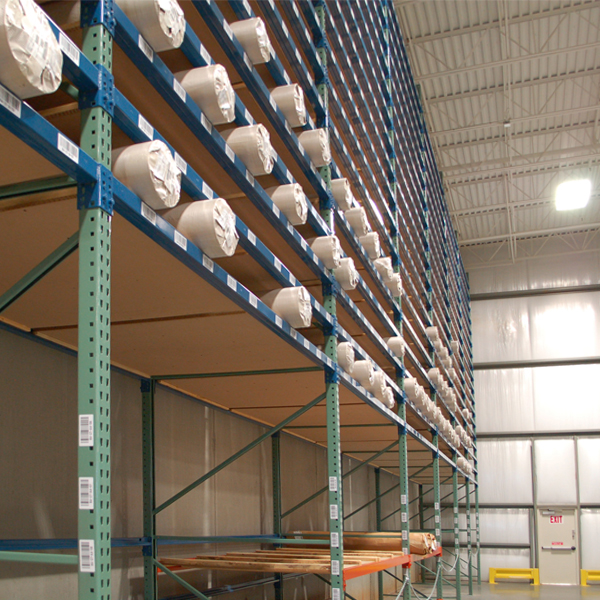

Industrial Pallet Rack Shelving
We provide design assistance, cost comparisons and several options for pallet rack shelving and lumber supports. No matter what support you need we have a product for your industrial pallet shelving application.
A few examples are:
- Particle Board
- Plywood
- Melamine
- MDF
We understand that some distribution or production centers require less support than ResinDek industrial pallet shelving has to offer. This is why we also provide high-quality particle board, plywood, melamine, and MDF for lighter-weight warehouse pallet rack shelving needs.
If you’re looking for a complete shelving system for your rack structure, be sure to learn more about our fully customizable ResinDek Shelving System!
ResinDek Shelving System
Fully Customizable Shelving System

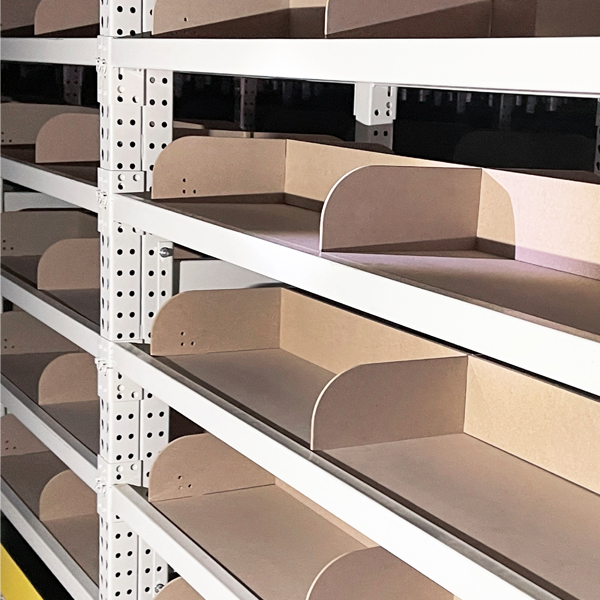

The ResinDek Shelving System easily stores and supports case goods in a rack or shelving structure inside a warehouse distribution or manufacturing center. ResinDek Shelving System redefines pallet rack organization, maximizing your storage capacity without sacrificing valuable floor space. The ResinDek Shelving System consists of:
- ResinDek horizontal shelving
- Optional vertical end stops
- ResinDek vertical warehouse shelf dividers
- Steel or lumber supports
This system easily installs without hardware, and our ResinDek dividers are far superior to cardboard and less expensive than steel. When desired vertical end stops are available.
Product Description
ResinDek Shelving System empowers you to create a customized warehouse rack organization that fits your unique needs. Through the utilization of custom machining, the ResinDek Shelving System can be designed to accommodate shelf heights of 6″ to 20″ (152.4 – 508 mm) , shelf depths from 8″ to 60″ (203.2 – 1,524 mm) , and vertical divider spaces from 4″ (101.6 mm) on center to 48″ (1,219.2 mm) on center. The custom machining allows for the possibility of the vertical dividers to be moved without the use of hardware, which provides a great deal of flexibility in the design of vertical divider spaces between shelves or within an individual shelf bay. If flue space is required, then the single sided ResinDek Shelving System can easily fasten to the shelf supports to maintain proper flue space.
ResinDek Shelving System is custom manufactured using a proprietary blend of moisture resistant medium and high density fiberboard and high density fiberboard. The panels may be unfinished as shown, or available with our Gray Diamond Seal® 2 finish. Our shelving system offers a range of industrial shelving dividers, allowing you to customize your storage layout and adapt to changing inventory needs with ease. ResinDek horizontal shelving and vertical dividers come in thicknesses ranging from 1/4″ to 3/4″ (6.35 – 19.05 mm) .
ResinDek Shelving System Lumber Supports
The lumber supports are manufactured in accordance with Southern Pine Inspection Bureau Standards. We furnish a #2 grade stamped Southern Yellow Pine lumber support. The supports may have custom machining to accommodate unique site requirements, including notches to accommodate the height of a step beam and the horizontal shelving members. The lumber supports have been tested extensively for this application. Load carrying capacity varies by length of support, but they have been proven to support up to 800 lbs (362.87 kg) each when the length is 48″ (1,219.2 mm) or less. The ends of lumber supports can be screwed down to rack or shelving beams at their ends.
ResinDek Shelving System versus Cardboard Dividers: Which One Is Better?
Choosing the proper shelving systems for industrial pallet racks is an investment, and it’s important as a well-chosen system can optimize storage capacity, improve picking times, and safeguard your inventory, while the wrong choice can lead to wasted space, operational bottlenecks, and potential safety hazards.
Whether ResinDek Shelving System or cardboard dividers are better for your industrial needs depends on several factors. The table below outlines the key differences between the two options to help you make an informed decision for your specific warehouse needs and priorities.
| Feature | ResinDek® Shelving System | Cardboard Dividers |
|---|---|---|
| Cost | More expensive upfront, but better ROI in the long term | Cheaper (but frequent replacements needed) |
| Durability | High | Low |
| Weight Capacity | High | Low |
| Customization | High | Limited |
| Organization | Great due to its customization options | Poor |
| Visibility | Great due to its sturdiness | Not fire-resistant and easily collapses under heavy loads |
| Sustainability | Recyclable | Readily recyclable (but frequent replacements needed) |
Fully Customizable Heavy Duty Industrial Shelving System
| Shelf Heights | Shelf Depths | Vertical Divider Spaces |
|---|---|---|
| 6" - 20" (152.4 - 508 mm) | 8" - 60" (203.2 - 1,524 mm) | 4" (101.6 mm) on center to 48" (1,219.2 mm) on center |
ResinDek Shelving System is Independently Evaluated, Tested & Approved for Rated Load Capacity
| Rack Appliance | P Ultimate | Rated Avg. Capacity |
|---|---|---|
| ResinDek Shelving System 1/2" (12.7 mm) Thick | ||
| 30" (762 mm) | 4,125 lbs (1,871.07 kg) | 2,063 lbs (935.76 kg) |
| 54" (1,371.6 mm) | 4,733 lbs (2,146.85 kg) | 1,027 lbs (465.84 kg) |
| ResinDek Shelving System 3/4" (19.05 mm) Thick | ||
| 30" (762 mm) | 4,756 lbs (2,157.28 kg) | 2,306 lbs (1,045.98 kg) |
| 54" (1,371.6 mm) | 4,125 lbs (1,871.06 kg) | 2,063 lbs (935.76 kg) |
The ResinDek Shelving System
The ResinDek Shelving System easily stores and supports case goods in a rack or shelving structure inside a warehouse, distribution or manufacturing center. Learn about the three basic components of this system, how it easily installs without hardware, how it’s far superior to cardboard, and more!
ResinDek Shelving System Evaluations
ResinDek Shelving System has been independently evaluated, tested and approved and received Seizmic’s S Mark through SMHE Inc., for its rated load capacity. Other loads and spans are available upon request.
ResinDek Shelving System has been independently evaluated by IAPMO Uniform Evaluation Services, an internationally acclaimed body of independent structural engineers. After thorough and careful review, IAPMO has found the ResinDek Shelving System to be in compliance with Building Code (IBC) regulations, and can be installed in Types I-V Building construction, where it is not a structural part of the building as noted in table 601 of the IBC. IAPMO Uniform Evaluation Services United States ER number 467 and Canada ER number UEL 5027.
ResinDek Shelving System provides a safe, easy, economical, and flexible configuration to rack and shelving units, which allows for easy sortation, categorization, and identification of a large number of product SKUs. In addition, since this is considered part of the rack and not part of the stored product, it can usually be installed earlier than cardboard boxes, saving time and manpower.
If you’re ready to take your warehouse rack organization to the next level, the ResinDek Shelving System could be the best solution for your industrial needs.
- Built to last: Handle heavier loads and withstand wear and tear compared to cardboard.
- Your way, not a maze: Customizable options to perfectly fit your specific storage needs.
Safety first: Fire-resistant and sturdy, promoting a safer work environment.
