Self-Storage Facilities
Save Construction Time & Money by Using ResinDek® Flooring
ResinDek® flooring panels, manufactured by Cornerstone Specialty Wood Products, LLC® provide a tremendous value for elevated floors in self-storage buildings. ResinDek composite engineered wood flooring panels are extremely durable, provide a showcase appearance and are easy to maintain. They have the proven structural integrity and the strength you associate with a concrete floor yet can offer savings of tens of thousands of dollars. ResinDek panels offer a compelling value for both new construction and retrofitting existing facilities and is backed by a 10-year product warranty.
How can you realize savings of up to $5/sqft by using ResinDek instead of concrete and get a product that is backed by a 10-year warranty?
- ResinDek is at least 40 lbs per square foot (18 kg per square meter) lighter than concrete which allows for less steel to be used in the support structure, along with potential savings in the foundation and footers.
- ResinDek is supplied with a factory finish so tracks can be laid for the storage units immediately after the flooring is installed. Concrete typically needs a week or more to cure before tapcons can be used to continue construction.
- ResinDek has an allowable deflection of L/240 whereas concrete’s allowable deflection is L/360. This creates a more ergonomic platform and again allows for less steel in the support structure.
- Material cost per square foot is less than that of concrete.
ResinDek® WR Water Resistant Flooring Panel
ResinDek WR flooring panels are perfect for self-storage facilities, modular offices, or any new construction project exposed to outdoor elements for up to 120 days. Their exceptional moisture resistance, meeting the stringent MR90 standard, ensures long-lasting durability, even in challenging environments – including interior applications with high humidity and limited washdown applications. ResinDek WR panels can be used on both the ground floor as well as mezzanine applications.
Resindek® Floor Panels for Self-Storage Facilities
ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs (910 – 3360 kg) and the rigorous demands of robotic traffic such as AGVs and AMRs.
We recommend that a minimum of 20-gauge (0.9 mm) corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge (1.2 mm) when live and dead loads exceed 2,500 Ibs. (1135 kg) ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” (19 mm) thick, ResinDek Max is 1-1/2″ (38 mm) thick, and ResinDek Xspan and Xspan FR are 1-1/8″ (28mm) thick.
For Use with Corrugated B-Deck:
ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek LD
ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg
ResinDek MD
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek WR
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek WR
ResinDek MAX
1-1/2” (38mm)Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg
ResinDek MAX
No Corrugated B-Deck Required (Single Panel Solution):
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg
ResinDek Xspan & FR
For Use with a Sub Floor:
ResinDek ReShield
¼” (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg
ResinDek ReShield
Optional Coatings & Finishes
For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks
Gray Diamond Seal® Coating
Gray Diamond Seal®
ESD Coating
MetaGard® GVT Steel Decking Surface
Unfinished
For AGV & AMR Robotic Traffic
TriGard®
ESD Ultra Coating
TriGard®
ESD Coating
MetaGard® SST Steel Decking Surface
Related Documents & Case Studies
CASE STUDY

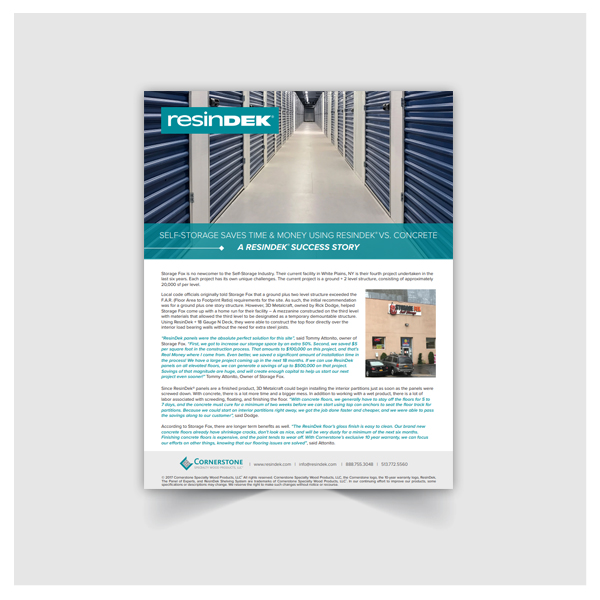

Self-Storage Saves Time & Money with ResinDek Flooring
CASE STUDY
Multi-Level Canadian Self-Storage Facility Elevates Revenues with ResinDek Panels
CASE STUDY
Two Floors Built Simultaneously Using ResinDek Panels Instead of Concrete
The Flooring Solution for Self-Storage Facilities
ResinDek provides not only a significant cost savings compared to concrete, but also allows for a quick installation. Learn about the benefits of ResinDek for Self-Storage.
