ResinDek® Flooring and Shelving Systems is the Solution for any Systems Integrator Project
Systems Integrators of elevated industrial work platforms, pick modules, and mezzanines agree that ResinDek composite engineered wood flooring panels offer the greatest value to their customers over concrete or bar/plank grating. Why? It’s the most flexible for future modifications, the easiest to install (not to mention fast), provides the best value, creates the most level surface, and is backed by a 10-Year product warranty.
ResinDek flooring panel:
- Maximize the durability and longevity of your customers’ elevated surfaces under heavy loads, rolling carts, pallet jacks, autonomous mobile robots (AMRs), or automatic guided vehicles (AGVs)
- In-house engineering and estimating teams provide fast response to quotations and comprehensive layouts, minimizing field cutting and waste
- Save time and money with corrugated steel deck, optimized for sizes, runs, steel thickness, corrugated profiles and beam spacings
- On-site and off-site testing available to ensure ResinDek flooring will perform to our standards, for specific applications
ResinDek Flooring for Systems Integrators
ResinDek composite engineered flooring panels have the proven structural integrity to support dynamic and static pallet jack load limits from 2,000 – 8,000 lbs and the rigorous demands of robotic traffic such as AGVs and AMRs.
We recommend that a minimum of 20-gauge corrugated metal B Deck be used on all ResinDek flooring projects (except for Xspan®) and a minimum of 18 gauge when live and dead loads exceed 2,500 Ibs. ResinDek Xspan and Xspan FR do not require a corrugated metal deck. ResinDek flooring panels LD, MD and HD are ¾” thick, ResinDek Max is 1-1/2″ thick, and ResinDek Xspan and Xspan FR are 1-1/8″ thick.
For Use with Corrugated B-Deck:
ResinDek LD
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek LD
ResinDek MD
3/4″ (19mm) Thick Panel
Robot Loads up to:
2,000 lbs/910 kg
Pallet Loads up to:
3,500 lbs/1,590 kg
ResinDek MD
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek WR
3/4″ (19mm) Thick Panel
Robot Loads up to:
500 lbs/230 kg
Pallet Loads up to:
2,000 lbs/910 kg
ResinDek WR
ResinDek MAX
1-1/2” (38mm) Thick Panel
Robot Loads up to:
6,000 lbs/2,275 kg
Pallet Loads up to:
8,000 lbs/3,360 kg
ResinDek MAX
No Corrugated B-Deck Required (Single Panel Solution):
ResinDek HD
3/4″ (19mm) Thick Panel
Robot Loads up to:
4,000 lbs/1,815 kg
Pallet Loads up to:
4,500 lbs/2,045 kg
ResinDek HD
ResinDek Xspan / Xspan FR
1-1/8” (28mm) Thick Panel
Robot Loads up to:
2,500 lbs/1,135 kg
Pallet Loads up to:
3,000 lbs/1,365 kg
ResinDek Xspan & FR
For Use with a Sub Floor:
ResinDek ReShield
1/4″ (6mm) Thick Panel
Robot Loads up to:
3,000 lbs /1,365 kg
Pallet Loads up to:
3,500 lbs /1,590 kg
ResinDek ReShield

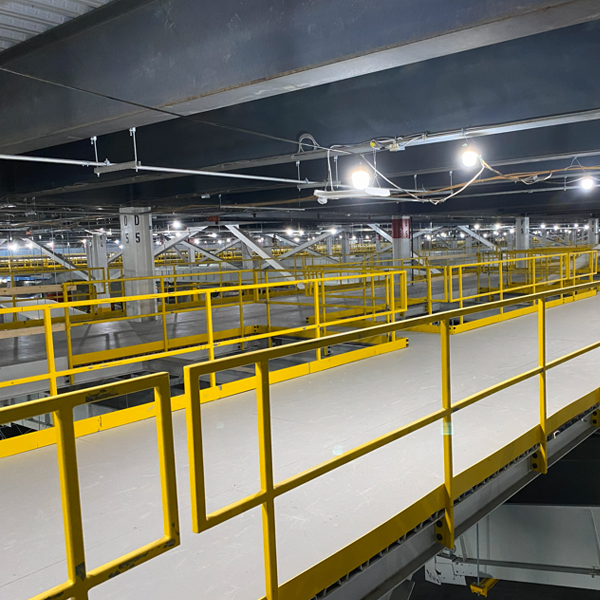

ResinDek Flooring Panels Inside a Distribution Center
ResinDek flooring panels can be customized for load capacities, required finish type, volume and type of traffic including heavy rolling pallet jack loads and robotic traffic with AGVs and AMRs. We can provide a hybrid flooring solution that is extremely cost-effective and is tailored to meet the needs of each project.
Related Documents & Case Studies
DOCUMENT
Finish and Load Tables for Robotic Traffic
DOCUMENT
ResinDek® Shelving System Brochure
CASE STUDY
ResinDek® with MetaGard® Eliminates the Neet to Install Additional Steel Plates
CASE STUDY

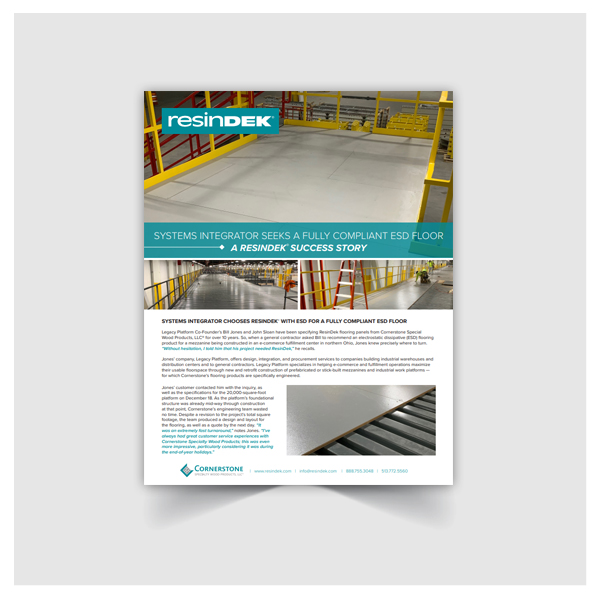

System Integrator Choose ResinDek® for a Fully Compliant ESD Floor
