ResinDek^® LD Flooring Panels

Economical Mezzanine Flooring Solutions

ResinDek LD composite engineered wood flooring panels deliver exceptional value and performance for warehouses, distribution centers, and multi-level self-storage facilities. Designed to withstand the demanding conditions of industrial environments, these durable mezzanine flooring panels outperform traditional alternatives like poly deck, OSB, and plywood—backed by a 10-year warranty with no delamination. Sustainability meets performance with ResinDek LD’s recycled content and formaldehyde-free construction, making it a responsible choice for environmentally conscious facilities without compromising on strength or longevity.

ResinDek LD Technical Data

Certifications & Compliance

ResinDek Product	SCS / FSC®	NAF	LEED®	CE Mark	UES-SR	UL	ASTM E-84 Class A	Moisture Resistance
ResinDek Product	SCS / FSC®	NAF	LEED®	CE Mark	UES-SR	UL	ASTM E-84 Class A	Moisture Resistance	LD								MR50

ResinDek Product	LD
ResinDek Product	LD	SCS / FSC®
NAF
LEED®
CE Mark
UES-SR
UL
ASTM E-84 Class A
Moisture Resistance	MR50

*FSC® License Code FSC-C124474 Certification available upon request only, please specify if FSC is required prior to ordering.

ResinDek LD Flooring Panels are Built for Demanding Industrial Environments

ResinDek LD panels are engineered for long-term performance in high-traffic warehouse and distribution operations. These industrial flooring panels excel in applications including:

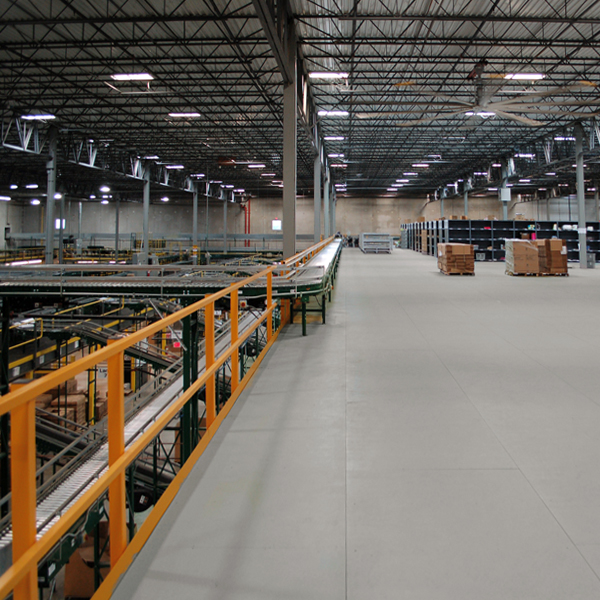

Conveyor systems and pallet rack flooring

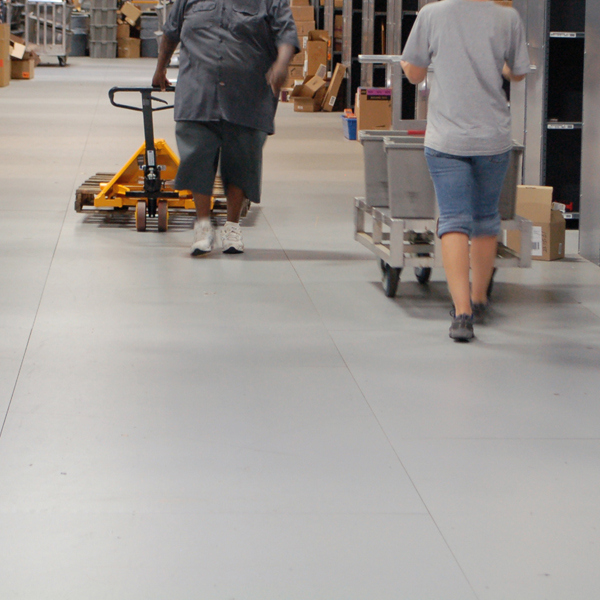

Heavy-duty operations with rolling carts and pallet jacks
AMR (Autonomous Mobile Robots) facilities
High-traffic warehouse environments

Sustainable, High-Performance Manufacturing Process

Our panels are manufactured using eco-friendly, high-performance materials:

Mostly recycled and recovered wood fibers
Eco-friendly resins
No added formaldehyde
Wax emulsifier for superior moisture resistance

These ingredients are combined and compressed under extreme pressure and temperature, creating panels with superior strength and durability. Available in sizes up to 4′ × 10′ (1219 mm × 3048 mm).

Custom Flooring Solutions with Expert Support

ResinDek’s tongue-and-groove panel design ensures effective wheel load transfer between panels, maximizing structural integrity. Four-sided tongue-and-groove configurations are available when needed for your specific application.

Every ResinDek panel is custom manufactured and backed by comprehensive design engineering services. For optimal performance, we recommend installing ResinDek LD flooring over a minimum of 20-gauge (.9 mm) corrugated metal B-Deck.

Optional Coatings & Finishes

For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks

Gray Diamond Seal® Coating

Gray Diamond Seal® ESD Coating

MetaGard® GVT Steel Decking Surface

Unfinished

For AGV & AMR Robotic Traffic

TriGard® ESD Ultra Coating

AMR Passes: ≤ 50M

TriGard® ESD Coating

AMR Passes: ≤ 20M

MetaGard® SST Steel Decking Surface

AMR Passes: ≤ 100M

Fastening Systems for ResinDek HD

Top Side Engineered Fasteners

For conventional top side fastener installation, use Cornerstone Specialty Wood Products, LLC Collated Stand-up Screwdriver and collated engineered drill screws. Not only will the collated screwdriver gun save you up to 40% in fastening costs, but it will reduce installation fatigue with its ergonomic design.

The top side engineered fasteners are designed for strength, durability and easy installation. No countersinking or pre-drilling is required as the wings are near the top of the shaft, which counterbore for screw heads. The number 2 square drive heads and points easily pierce up to 12 gauge (2.66 mm) steel decking and is designed to drill through wood and steel decking prior to the threads engaging, thus preventing the mezzanine floor panels from lifting.

Our engineered fasteners offer the following advantages:

More consistent screw depth with greater control and settings
Low lead screw tips
Fast and easy bit tip replacements
Requires minimal training
Stout #10 wire gauge screw
Zinc coating for high humidity environments resists corrosion
Your choice of gray or beige engineered fasteners

Invisi-Loc® Underside Engineered Fastening System

Invisi-Loc provides showcase mezzanine floor systems with no visible fasteners that are dependable, economical and easy to install. The Invisi-Loc under deck engineered fastening system mounts fasteners under the mezzanine decking hiding unwanted screw holes on top. Plus, when installed with our pre-punched corrugated metal decking, installation time is reduced and potentially dangerous metal shavings are eliminated.

20 Invisi-Loc engineered fasteners are required per 4′ x 8′ (1219 x 2438 mm) sheet. A pneudralic installation tool and a standard medium duty air compressor supplies the required power.
Corrugated metal decking is pre-punched and B metal deck is fastened to the bar joists like other steel decking using drilling screws or welding.
All pneudralic installation tools can be rented or purchased from Cornerstone Specialty Wood Products, LLC.
When installed according to Cornerstone Specialty Wood Products, LLC specifications the Invisi-Loc® Underside Engineered Fastening System carries a 10-year warranty.

Collated Screws For Corrugated Steel Deck

B-Deck screws work best in roll form beams and structural steel under 3/16″ (4.76 mm) thick. Valleys less than 2-1/2″ (63.5 mm) wide may not accommodate the screwdriver. Contact Cornerstone Specialty Wood Products, LLC for additional information.

Note: Additional Fastening Systems are available, please contact Cornerstone Specialty Wood Products, LLC for more information.
