ResinDek^® ReShield^®

Overlay Flooring Panel

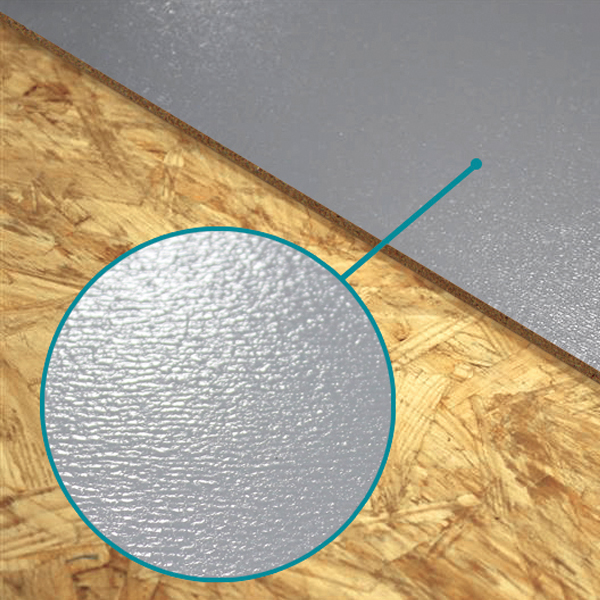

Our innovative ResinDek ReShield flooring panels provide a seamless upgrade for existing floor surfaces that need enhanced performance characteristics. Whether you require specific ESD properties, specialized wear resistance for robotic traffic, or improved gouge and slip resistance, these versatile panels deliver superior results. At just 1/4” (6 mm) thick, these lightweight panels install directly over most level substrates —including plywood, OSB, chipboard, and unfinished ResinDek floors — without requiring extensive demolition or preparation work.

ResinDek ReShield Technical Data

1/4" (6 mm)
1.15 psf (5.6 kg/m2)
Pallet jack rolling loads up to 3,500 lbs (1590 kg)*
AGV/AMR rolling loads up to 3,000 lbs (1365 kg)*
* Load capacity varies based on the underlying substrate, with maximum combined live and dead loads reaching up to 3,000 lbs. (1,365 kg) for AGVs/AMRs and 3,500 lbs. (1,590 kg) for pallet jacks.

Panel Thickness: 1/4" (6 mm)
Panel Weight: 1.15 psf (5.6 kg/m2)
Pallet Jack & Product Load Limits: Pallet jack rolling loads up to 3,500 lbs (1590 kg)*
Mobile Robot & Product Load Limits: AGV/AMR rolling loads up to 3,000 lbs (1365 kg)*
Single Panel Solution (No Corrugated B-Deck) for use with AMRs only: * Load capacity varies based on the underlying substrate, with maximum combined live and dead loads reaching up to 3,000 lbs. (1,365 kg) for AGVs/AMRs and 3,500 lbs. (1,590 kg) for pallet jacks.

Certifications & Compliance

ResinDek Product	SCS / FSC®	NAF	LEED®	UES-SR	UL	ASTM E-84 Class A
ResinDek Product	SCS / FSC®	NAF	LEED®	UES-SR	UL	ASTM E-84 Class A	Reshield®

ResinDek Product	Reshield®
ResinDek Product	Reshield®	SCS / FSC®
NAF
LEED®
UES-SR
UL
ASTM E-84 Class A

*FSC® License Code FSC-C124474 Certification available upon request only, please specify if FSC is required prior to ordering.

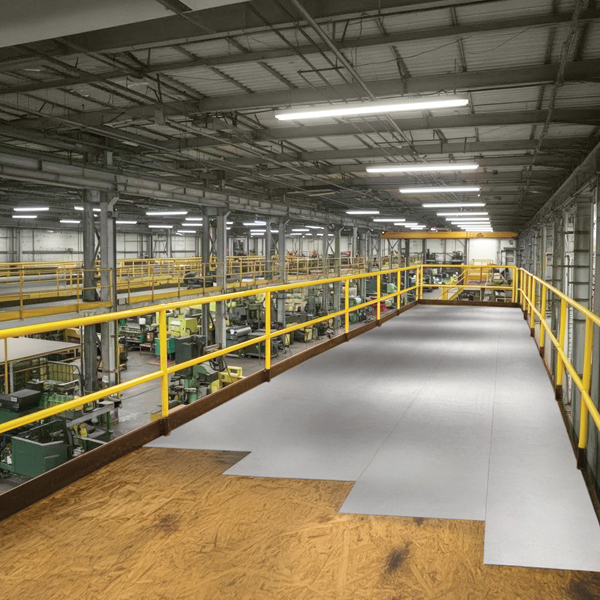

Instant Floor Performance Upgrade without Disruption

The panels excel in both automated material handling environments and traditional warehousing and manufacturing applications, providing consistent performance across mezzanine installations. Their durability, combined with quick installation and minimal disruption to existing operations, delivers immediate value while extending the life of your current flooring infrastructure. By eliminating the need for complete floor replacement, ResinDek ReShield panels offer a cost-effective path to enhanced floor performance without compromising on quality or functionality.

Eco-Friendly Composite Construction

ResinDek ReShield is manufactured with mostly recycled and recovered wood fibers, environmentally friendly resins with no added urea formaldehyde, and a wax emulsifier for moisture resistance. The ingredients are combined and compressed under extremely high pressure and temperature, resulting in a panel with superior physical properties. ResinDek composite engineered flooring panels are custom manufactured and available in sizes up to 4’ (1219 mm) x 10’ (3048 mm)

Optional Coatings & Finishes

For Heavy Equipment, Storage, Rolling Carts & Pallet Jacks

Gray Diamond Seal® Coating

Gray Diamond Seal® ESD Coating

MetaGard® GVT Steel Decking Surface

Unfinished

For AGV & AMR Robotic Traffic

TriGard® ESD Ultra Coating

AMR Passes: ≤ 50M / AGV Passes: ≤ 20M

TriGard® ESD Coating

AMR Passes: ≤ 20M / AGV Passes: ≤ 5M

MetaGard® SST Steel Decking Surface

AMR Passes: ≤ 100M / AGV Passes: N/A

Fastening Systems for ResinDek ReShield

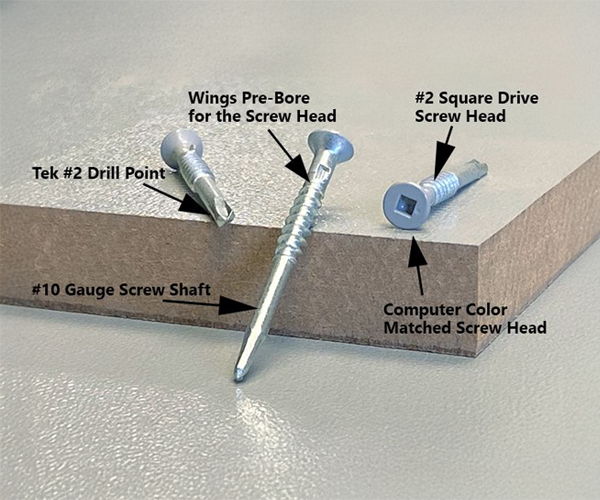

Top Side Engineered Fasteners

For conventional top side fastener installation, use Cornerstone Specialty Wood Products, LLC Collated Stand-up Screwdriver and collated engineered drill screws. Not only will the collated screwdriver gun save you up to 40% in fastening costs, but it will reduce installation fatigue with its ergonomic design.

The top side engineered fasteners are designed for strength, durability and easy installation. No countersinking or pre-drilling is required as the wings are near the top of the shaft, which counterbore for screw heads. The number 2 square drive heads and points easily pierce up to 12 gauge (2.66 mm) steel decking and is designed to drill through wood and steel decking prior to the threads engaging, thus preventing the mezzanine floor panels from lifting.

Our engineered fasteners offer the following advantages:

More consistent screw depth with greater control and settings
Low lead screw tips
Fast and easy bit tip replacements
Requires minimal training
Stout #10 wire gauge screw
Zinc coating for high humidity environments resists corrosion
Your choice of gray or beige engineered fasteners

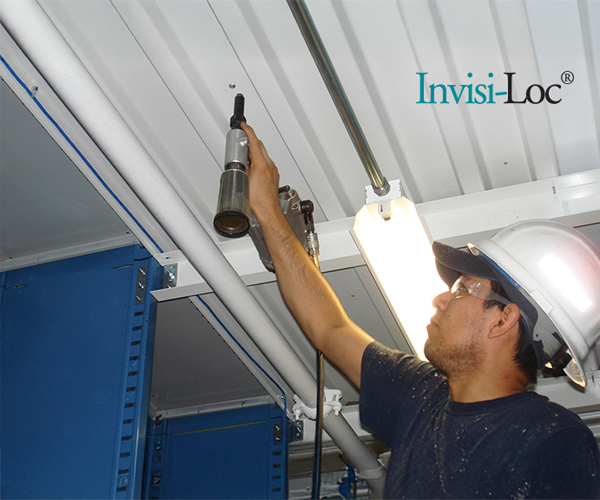

Invisi-Loc® Underside Engineered Fastening System

Invisi-Loc provides showcase mezzanine floor systems with no visible fasteners that are dependable, economical and easy to install. The Invisi-Loc under deck engineered fastening system mounts fasteners under the mezzanine decking hiding unwanted screw holes on top. Plus, when installed with our pre-punched corrugated metal decking, installation time is reduced and potentially dangerous metal shavings are eliminated.

20 Invisi-Loc engineered fasteners are required per 4′ x 8′ (1219 x 2438 mm) sheet. A pneudralic installation tool and a standard medium duty air compressor supplies the required power.
Corrugated metal decking is pre-punched and B metal deck is fastened to the bar joists like other steel decking using drilling screws or welding.
All pneudralic installation tools can be rented or purchased from Cornerstone Specialty Wood Products, LLC.
When installed according to Cornerstone Specialty Wood Products, LLC specifications the Invisi-Loc Underside Engineered Fastening System carries a 10-year warranty.

Collated Screws For Corrugated Steel Deck

B-Deck screws work best in roll form beams and structural steel under 3/16″ (4.76 mm) thick. Valleys less than 2-1/2″ (63.5 mm) wide may not accommodate the screwdriver. Contact Cornerstone Specialty Wood Products, LLC for additional information.

Note: Additional Fastening Systems are available, please contact Cornerstone Specialty Wood Products, LLC for more information.
