WAREHOUSE FLOORING SOLUTION FOR HEAVY EQUIPMENT, ROLLING CARTS & PALLET JACKS
WHEN DURABILITY MATTERS CHOOSE RESINDEK® INDUSTRIAL FLOORING
At Cornerstone Specialty Wood Products®, we know and understand the importance of having the right flooring product for the right application. That's why we offer a variety of ResinDek warehouse flooring panels in different thicknesses, densities, and with different surface finishes.
Since 1994, ResinDek flooring panels have been installed in manufacturing facilities, distribution centers, warehouses and cold storage facilities for major corporations worldwide. The intent of Cornerstone Specialty Wood Products then and now is "We don't just make better mezzanine floors…We make mezzanine floors better". We strive to provide solutions that improve the ergonomics in work environments, reduce environmental impacts, and bring significant value to the professionals in many different industries.
Whether you need a long-lasting industrial flooring solution for your ground floor, work platform, or mezzanine system, we’ve got you covered.
With this objective in mind the team at Cornerstone Specialty Wood Products is committed to:
- Better products with easier installation
- Application-specific flooring for all industries
- Excellent field support and product testing
- LEED® and FSC® certified products
- Material and labor savings for customers

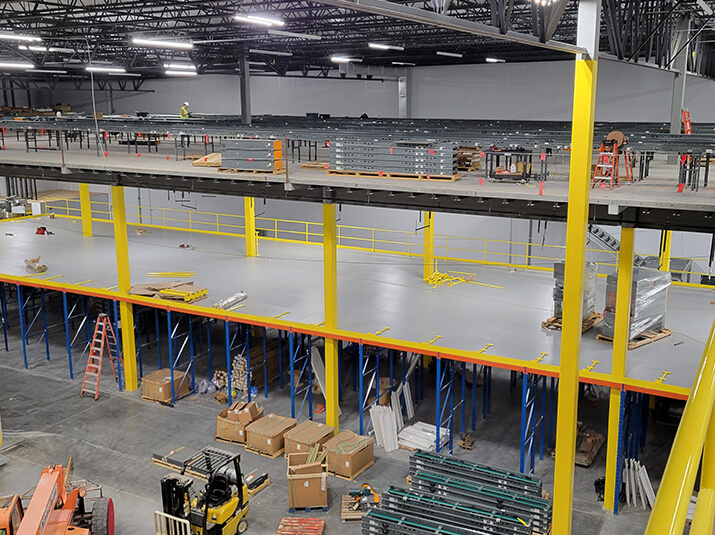

RESINDEK® WAREHOUSE MEZZANINE FLOOR PANELS FOR HEAVY EQUIPMENT, ROLLING CARTS & PALLET JACKS

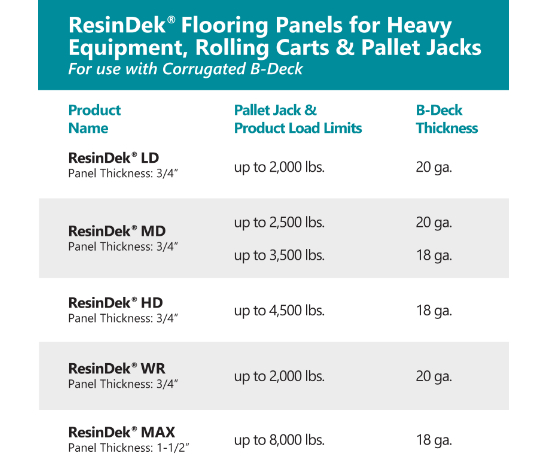

RESINDEK FLOORING PANELS - For Use with Corrugated B-Deck
ResinDek® LD
3/4" Thick Panel
Robot loads up to 500 lbs.
Pallet loads up to 2,000 lbs.
ResinDek® SD
Loads Up to 3,500 lbs.
ResinDek® MD
3/4" Thick Panel
Robot loads up to 2,000 lbs.
Pallet loads up to 3,500 lbs.
ResinDek® HD
3/4" Thick Panel
Robot loads up to 4,000 lbs.
Pallet loads up to 4,500 lbs.
ResinDek® WR
3/4" Thick Panel
Robot loads up to 500 lbs.
Pallet loads up to 2,000 lbs.
ResinDek® MAX
1-1/2" Thick Panel
Robot loads up to 6,000 lbs.
Pallet loads up to 8,000 lbs.
* Loads above include both weight of pallet jack + product.

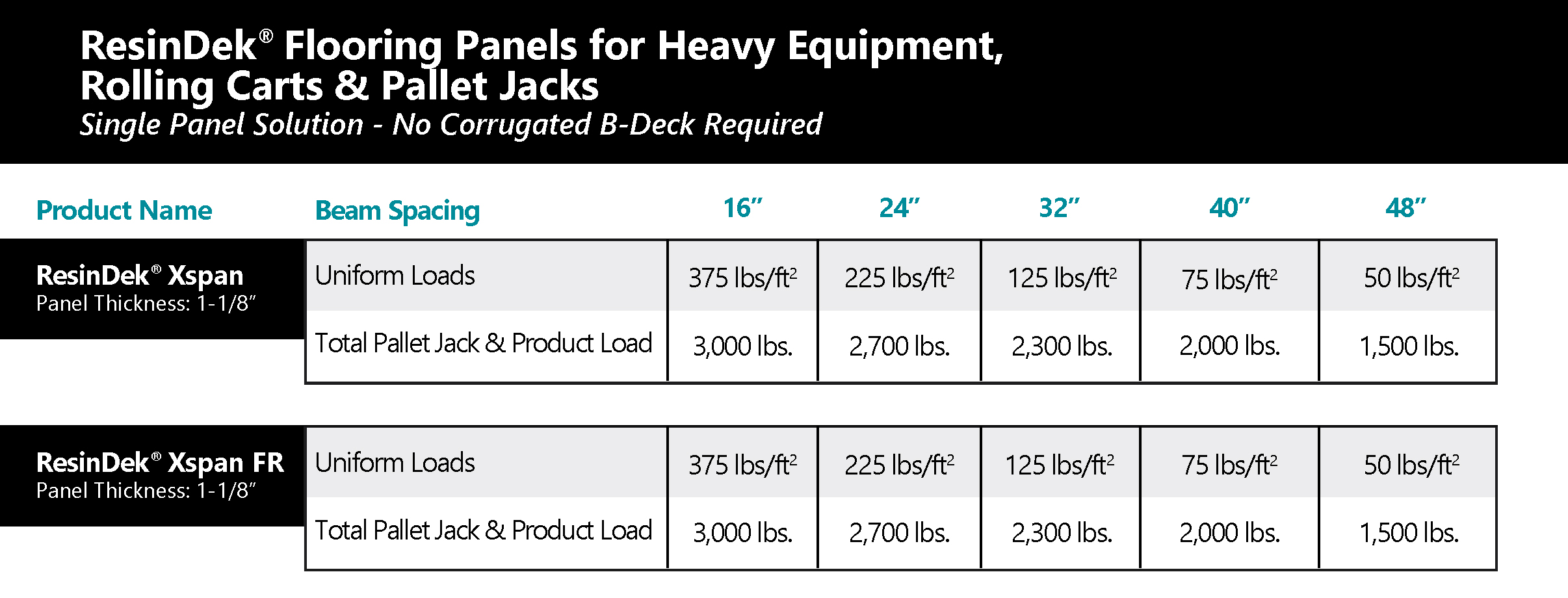

RESINDEK FLOORING PANELS - Single Panel Solution - No Corrugated B-Deck Required
ResinDek® Xspan®
1-1/8" Thick Panel
Robot loads up to 2,500 lbs.
Pallet loads up to 3,000 lbs.
ResinDek® Xspan® FR
1-1/8" Thick Panel
Robot loads up to 2,500 lbs.
Pallet loads up to 3,000 lbs.
* Loads above include both weight of pallet jack + product and are calculated on 16" beam spacing.
RESINDEK FLOORING PANELS – Overlay Solution
ResinDek® ReShield™
1/4" Thick Panel
Robot loads up to 3,000 lbs.
Pallet loads up to 3,500 lbs.
* ResinDek ReShield allowable loads are dependent upon the substrate that it is being installed on.
Leading the industry in mezzanine floor design, Cornerstone Specialty Wood Products exclusively offers ResinDek composite engineered flooring panels. ResinDek panels provide a durable showcase appearance that is easy to maintain and is backed by a warranty that covers pallet jack loads for 10-years.
All ResinDek industrial flooring panels:
- Can contribute towards earning points for LEED® qualified buildings
- Are certified by SCS Global to have No Added Formaldehyde
- Are available with FSC® Certification under the license code FSC-C124474, when required.
- Independently evaluated and approved for use in Types I-V construction and as part of a fire-resistance-rated assembly by the IAPMO Uniform Evaluation Services. United States ER Number 467. Canada ER Number UEL 5027.
In addition, ResinDek® flooring system can be UL Classified for up to a 2-hour fire-rated assembly under UL Design No. L701 and UL File No. R39265.
ResinDek panels can contribute towards earning points for LEED® qualified buildings. All ResinDek panels have been certified by SCS Global to have No Added Formaldehyde. Additionally, when required ResinDek panels are available with FSC® Certification under the license code FSC-C124474.
ResinDek panels have been independently evaluated and approved for use in Types I-V construction as part of a fire-resistance rated assembly by the IAPMO Uniform Evaluation Services. United States ER Number 467. Canada ER Number UEL 5027. In addition, ResinDek® flooring system can be UL Classified for up to a 2-hour fire rated assembly under UL Design No. L701 and UL File No. R39265.
ResinDek panels have the proven structural integrity to support live and dead pallet jack loads from 2,000 – 8,000 lbs. A minimum of 20 GA corrugated metal B-Deck is recommended on all ResinDek flooring projects where live and dead loads are under 2,500 lbs. 18 GA corrugated metal B-Deck should be used on live and dead loads that exceed 2,500 lbs. ResinDek Xspan and ResinDek Xspan FR is a structural flooring solution that does not require B-Deck.
View Chart in Metrics
NOTES FOR TABLES ABOVE:
- Testing was completed with polyurethane caster wheels and any deviation or alternative wheels such as crowned, steel or plastic could void the warranty. Contact CSWP for more information.
- For flooring used with corrugated b-deck: Please note load values above are calculated on 36" beam spacing, increased spacing will reduce capacity. Floor deflection is L/240.
- For flooring solutions with no b-deck: All allowable loads are based on a two span condition. Uniform load values are based on L/240 deflections, any deviation can positively or negatively impact these values. Please contact Cornerstone for other span conditions. The calculations and load tables to the left have been compiled based on specified calculation methods and assumptions. The loads provided are for the purpose of information for preliminary studies and can not be used as a reference in structural studies. Contact an accredited engineering office or architect to perform a complete stability analysis.
Need help deciding which industrial flooring solution is right for you?
CONTACT USRESINDEK® INDUSTRIAL FLOOR FINISHES FOR HEAVY EQUIPMENT, ROLLING CARTS & PALLET JACKS
RESINDEK WAREHOUSE FLOORING FINISHES
Gray Diamond Seal® Coating
Gray Diamond Seal® ESD Coating
MetaGard® Steel Decking Surface - GVT
Unfinished
Choose from:
- Gray Diamond Seal®, the industry choice for heavy rolling pallet jacks,
- Gray Diamond Seal ESD when electrostatic dissipative is required, or MetaGard® GVT with a steel surface for aggressive dragging areas such as pallet flows or drop zones.
- ResinDek Unfinished (UF), if you are looking for the most economical flooring solution that still comes with a 10-year product warranty.
Be sure to ask us how to design a hybrid flooring solution that is extremely cost-effective and tailored to meet the needs of each individual project.
RESINDEK® SHELVING SYSTEM FOR WAREHOUSE MEZZANINE FLOOR
The ResinDek® Shelving System by Cornerstone Specialty Wood Products helps operations convert industrial racks and shelves for optimal storage and organization of case goods and individual components. The system is comprised of ResinDek horizontal shelving, ResinDek vertical dividers, steel or lumber supports to span the rack beams (including stepped), and vertical end stops. Custom machined to match specific storage needs, the system easily installs without hardware.
Because safety is paramount in warehousing applications, the ResinDek Shelving System has been independently evaluated by IAPMO Uniform Evaluation Services to verify compliance with International Building Code (IBC) regulations for installation in Types I-V Building construction. When used in applications that require flue space, the shelves can be easily fastened to the shelf supports to maintain proper opening size. Further, ResinDek Shelving has received Seizmic's S Mark for its rated load capacity.
