RESINDEK® FOR SELF-STORAGE FACILITIES

SAVE CONSTRUCTION TIME & MONEY BY USING RESINDEK® FLOORING

ResinDek 10 year product warranty image


ResinDek® flooring panels, manufactured by Cornerstone Specialty Wood Products, LLC® provide a tremendous value for elevated floors in self-storage buildings. ResinDek composite engineered wood flooring panels are extremely durable, provide a showcase appearance and are easy to maintain. They have the proven structural integrity and the strength you associate with a concrete floor yet can offer savings of tens of thousands of dollars. ResinDek panels offer a compelling value for both new construction and retrofitting existing facilities and is backed by a 10-year product warranty.

How can you realize savings of up to $5/sqft by using ResinDek instead of concrete and get a product that is backed by a 10-year warranty?

  • ResinDek is at least 40 lbs per square foot lighter than concrete which allows for less steel to be used in the support structure, along with potential savings in the foundation and footers.
  • ResinDek is supplied with a factory finish so tracks can be laid for the storage units immediately after the flooring is installed. Concrete typically needs a week or more to cure before tapcons can be used to continue construction.
  • ResinDek has an allowable deflection of L/240 whereas concrete's allowable deflection is L/360. This creates a more ergonomic platform and again allows for less steel in the support structure.
  • Material cost per square foot is less than that of concrete.

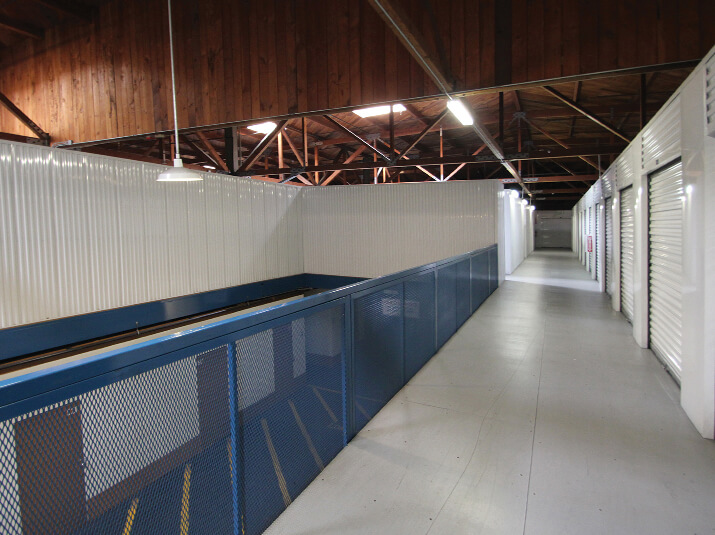

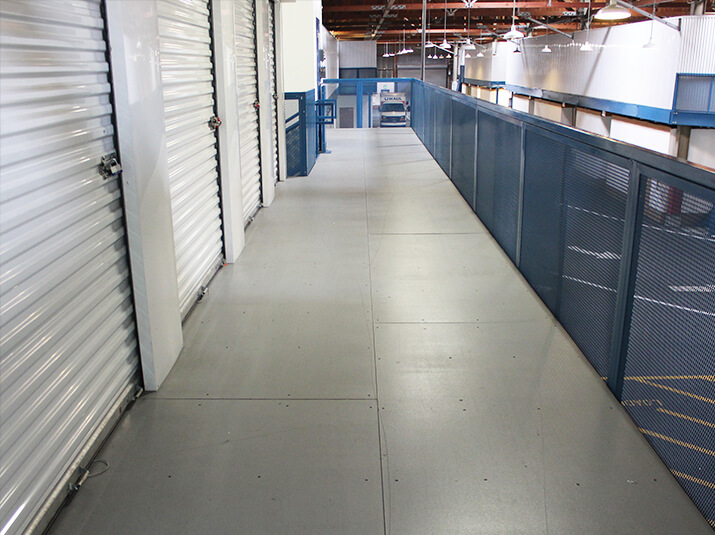

Self-storage mezzanine with ResinDek
Self-storage mezzanine with ResinDek
Self-storage mezzanine

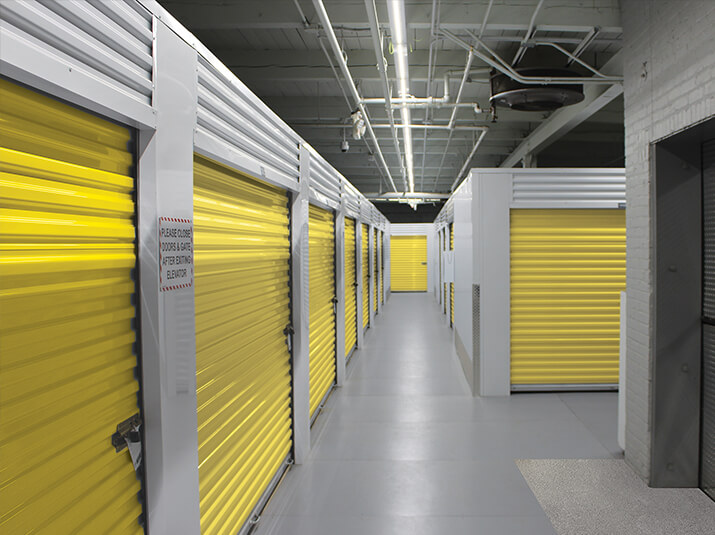

Self-storage with ResinDek TriGard and MetaGard

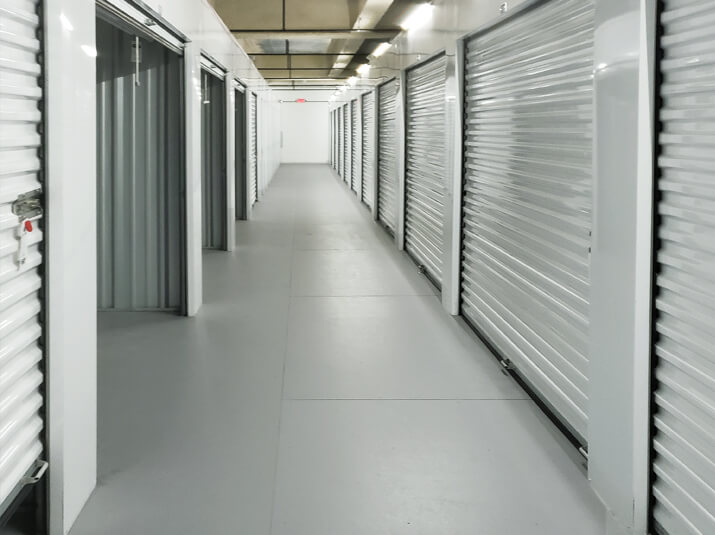

ResinDek in self-storage facility open unit doors

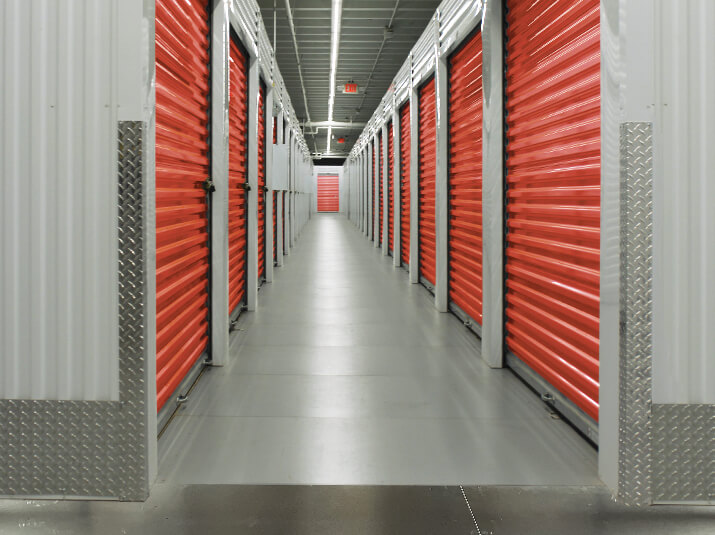

Self-storage facility with ResinDek TriGard and MetaGard

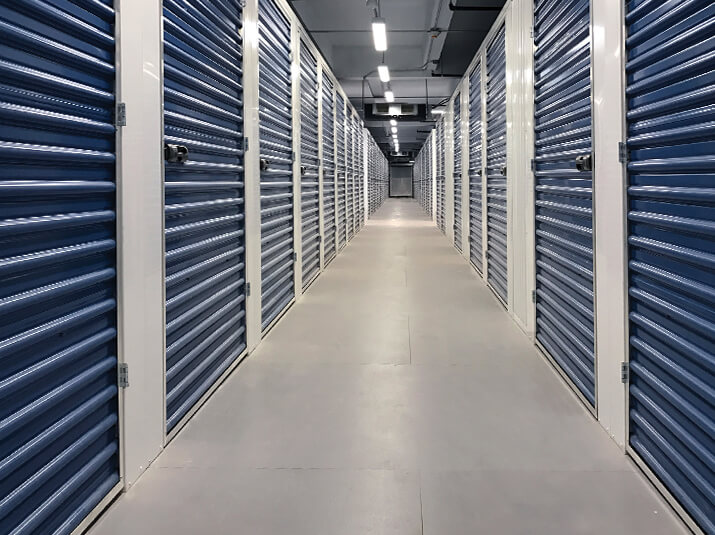

ResinDek with TriGard flooring SS

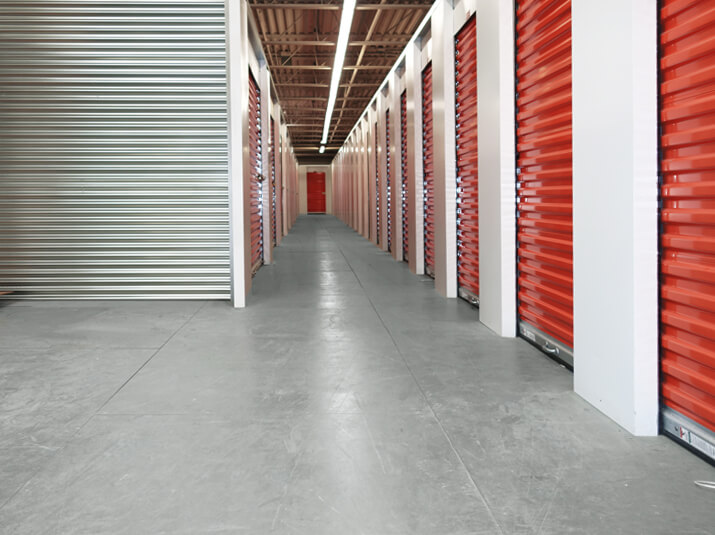

Self-storage facility with ResinDek TriGard
Self-storage mezzanine with ResinDek

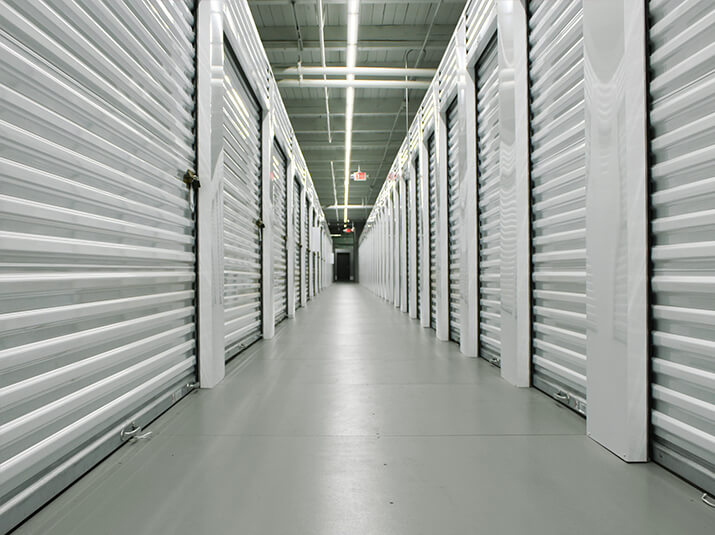

ResinDek in self-storage facility

RESINDEK® FLOOR PANELS FOR SELF-STORAGE FACILITIES

ResinDek flooring panels are custom manufactured and easily supports 125 psf uniform loads, in fact they support rolling pallet jack loads from 2,000 to 8,000 lbs. ResinDek panels are custom manufactured, can be cut to size. Standard size is 4' x 8', but they are available in sizes up to 4' x 10'. Each panel comes standard with tongue and grooves along the long edges, but they are available on all four sides or with a square edge.

ResinDek panels have been independently evaluated and approved for use in Types I-V construction and as part of a fire-resistance rated assembly by the IAPMO Uniform Evaluation Services. United States ER Number 467. Canada ER Number UEL 5027. ResinDek flooring system can be UL Classified for up to a 2-hour fire rated assembly under UL Design No. L701 and UL File No. R39265.

ResinDek LD, MD and HD are 3/4" thick, ResinDek Xspan and Xspan FR are 1-1/8" thick and ResinDek MAX is 1-1/2" thick. We recommend that a minimum of 20-gauge corrugated metal B Deck or 20-gauge N-Deck be used on all ResinDek® flooring projects (except for Xspan®) and a minimum of 18 gauge when live and dead loads exceed 2,500 lbs.

RESINDEK FLOORING PANELS - For Use with Corrugated B-Deck

ResinDek LD product.

ResinDek® LD
Loads Up to 2,000 lbs.

ResinDek SD product.

ResinDek® SD
Loads Up to 2,500 lbs.

ResinDek MD product.

ResinDek® MD
Loads Up to 3,500 lbs.

ResinDek HD product.

ResinDek® HD
Loads Up to 4,500 lbs.

ResinDek MAX product.

ResinDek® MAX
Loads Up to 8,000 lbs.

* Loads above include both weight of pallet jack + product.


RESINDEK FLOORING PANELS - Single Panel Solution - No Corrugated B-Deck Required

ResinDek Xspan product.

ResinDek® Xspan®
1-1/8" Thick Panel
Robot loads up to 2,500 lbs.
Pallet loads up to 3,000 lbs.

ResinDek Xspan FR product.

ResinDek® Xspan® FR
1-1/8" Thick Panel
Robot loads up to 2,500 lbs.
Pallet loads up to 3,000 lbs.

* Loads above include both weight of pallet jack + product and are calculated on 16" beam spacing.


RESINDEK® FLOOR FINISHES FOR SELF-STORAGE FACILITIES

Specify a durable, industrial coating or encapsulated steel surface for your self-storage facility. Gray Diamond Seal finish has exceptional resistance to stains, is highly durable and slip resistant. ResinDek with the Gray Diamond Seal® finish will look beautiful with a showcase appearance year after year. If electrostatic dissipative (ESD) is required be sure to request Gray Diamond Seal ESD. ResinDek with MetaGard® GVT can be used in high traffic areas such as the opening to the freight elevators.

FOR HEAVY EQUIPMENT, STORAGE, ROLLING CARTS & PALLET JACKS
