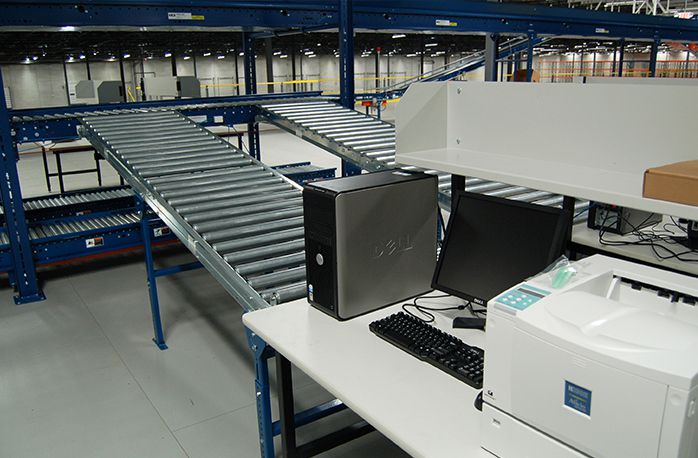

Dell manufacturing facility with ResinDek ESD flooring.

RESINDEK® ESD FLOORING INSTALLATION FOR #1 COMPUTER SUPPLIER

ESD FLOORING INSTALLATION - PROJECT OVERVIEW

Summary: The world's #1 direct-sale computer supplier required a mezzanine flooring solution to prevent electrostatic discharge (ESD) damage to sensitive electronic components. The flooring was enhanced with the Invisi-Loc® underside fastening system, creating a smooth, cleanable surface. ResinDek ESD panels are compliant with ANSI/ESD Association Specifications, ensuring reliable static control.

Challenge: Provide a mezzanine flooring solution to safeguard sensitive electronic devices from electrostatic discharge damage.

Solution: ResinDek® Gray Diamond Seal® ESD was selected for its electrostatic dissipative surface and the Invisi-Loc® underside fastening system, which provides a seamless, easy-to-maintain surface while concealing fasteners.

ResinDek® panels with ESD are engineered to exceed industry standards for static-controlled flooring, shelving, and work surfaces. They are a preferred choice for leading manufacturers, particularly in mezzanine and work platform applications where ESD protection is critical. Implementing ESD control programs with ResinDek ESD electrostatic dissipative flooring ensures robust protection during the manufacturing, transportation, and storage of sensitive electronic devices.

Industry studies indicate that a significant percentage of electronic failures stem from electrostatic discharge damage. This vulnerability is heightened by the increasing prevalence of advanced technologies and miniaturized electronic components.

ESD losses can lead to:

  • Lost production time
  • Connection downtime
  • Data corruption or loss
  • Potential shocks to personnel
  • Systems disruptions due to reboots
  • Equipment damage

ESD FLOORING INSTALLATION

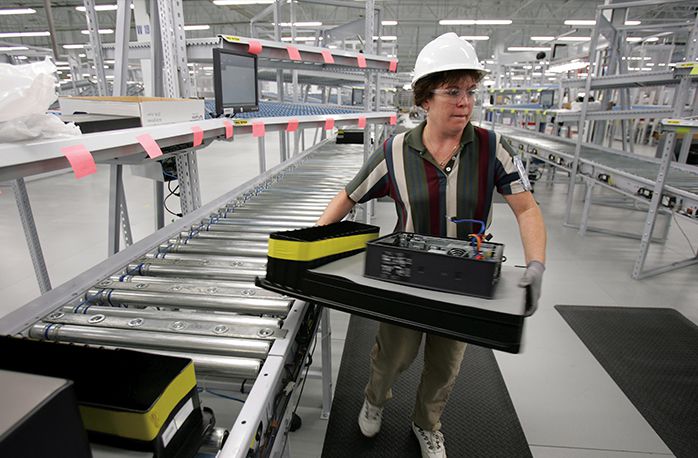

When the world's #1 direct-sale computer supplier constructed their 527,000 sq. ft. electronics manufacturing facility in North Carolina, they chose ResinDek ESD to mitigate electrostatic discharge damage to solid-state devices. The installation included the patented Invisi-Loc® underside fastening system, which conceals fasteners for a smooth, easy-to-clean surface.

Cornerstone Specialty Wood Products' engineering team developed the Gray Diamond Seal® ESD coating, known for its durability and aesthetic appeal. This coating provides excellent resistance to common stains and is designed for easy maintenance.

RESINDEK® ESD STATIC-CONTROLLED WOOD DECKING PANELS ARE COMPLIANT WITH ANSI/ESD ASSOCIATION SPECIFICATIONS

ResinDek ESD panels have undergone extensive testing by Stephen Halperin & Associates, confirming compliance with the following ANSI/ESD Association Specifications:

  • ANSI/ESD S7.1 - Resistive Characterization of Materials–Floor Materials.
  • ANSI/ESD S20.20 - Protection of Electrical and Electronic Parts, Assemblies and Equipment.
  • ANSI/ESD STM97.1 - Floor Materials and Footwear–Resistance Measurement in Combination with a Person.

Testing Results:

  • Average point-to-point resistance = 6.6 x 10^6 ohms
  • Average point-to-ground resistance = 7.8 x 10^6 ohms
  • ResinDek ESD mezzanine floor panels generated less than 10 volts with static-controlled footwear and exhibited rapid voltage decay from 5,000 volts to below 50 volts in under 0.50 seconds.
PDF Icon ResinDek® ESD Floors World's #1 Direct-Sales Computer Supplier
